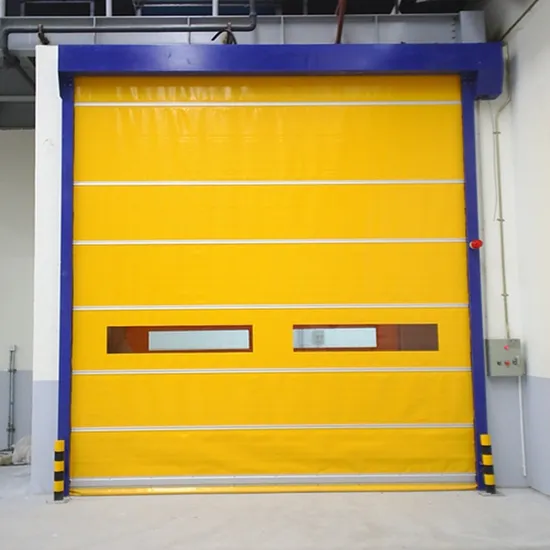

PVC Fabric High Performance High Speed Rolling Door (HF-1073)

Product Description

PVC Fabric High Performance High Speed Rolling Door (HF-1073)
Door Specification :
1.Frame : 2MM thicknesses cold-roll Stainless steel .
2.Motor : Germany SEW brake motor , power 0.55- 1.5KW, power supply 220V/380V, brake voltage is 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box .
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device : Korea Photocell Sensor (AUTONICS) , emergency stopping reaction when sensing obstacles .
6.Curtain : France high-density polyester fiber and the surface coating processing, thickness 0.8MM-1.5MM .
7.Wind resistant : The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function : Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain , can be replaced easily if any curtain broken , save your cost.
9.Transparent window : 1.2MM thickness transparent PVC window , size and location is up to your request .
10.Seal : seal brush is Installed inside the guides, and the special bottom design , to fit any uneven ground .
11.Cotrolling way : Radar Sensor, Magnetic loop , Remote Control, Push button, Rope Switch , ect …
12.Limiting Switch : Mechanical limiting switch , easily and exactly .
13. Emergency stop button on control panel, stop easily by hand once disconnect or accident .
14. All Hongfa's production is with fault recovery function, system will self-recovery after power cut off .
15.Delivery time : About 7 business days with contract and deposit confirmed .
16.Pyament item : 50% before production , and the other 50% before shipment
17.Warranty Details : We provide 12 months warranty for all doors and accessories .

Frame	1.Power Coated Steel 2.Aluminum Track 3.Stainelss Steel Frame: S.S 201 & S.S 304
Door Curtain	0.8mm~1.5mm Thickness
Motor Choice	1.German SEW 2.China SEJ / SNMA
Control Panel	JapanMitsubishi Danmark
Command System	Radar Sensor, Magnetic loop , Remote Control, Push button, Rope Switch , ect...
Safety Device	1. Photocell Sensor(Korea Autonics) 2. Safety edge bottom (BUTTERFLY Pressure Wave Sensor)
Delivery Time	7 -10 business days
Package	Plywood case or Cardboard , suitable for sea freight or air freight .

Product Description
What service you can get from us ?
1) OEM service for you and your clients .
2) Arrange the shipment for you to everywhere .
3) CE / ISO-9001 / SGS Certification
4) Installation video or instruction for you.
5) Available suggestion about the correct doors.
6) Professional service supporting with different language , email or phone calling .
7) Operating guidance and instruction after installation .
8) Professional / Tirelessly after-sales service .
9) 12 Months warranty for all doors and accessories.
F A Q :
1. What's the payment details?
Deposit before production , and balance before shipment .
2. What's the delivery time?
For common order, about 7 days only .
3. What about the warranty for the doors ?
We provide 12 months warranty for all doors and accessories.
4. What certification you can provide ?
ISP-9001 ; CE ; SGS
5. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us .
6. What's the MOQ?
We accept 1 set as sample order .
7. How about the package?
Plywood case or Cardboard , suitable for sea freight or air freight , as your request .
