Heavy-Duty CT60-9 Backhoe Excavator with Reliable Yanmar Engine
| US$23,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT60-9(Yanmar engine&6t)
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.072-0.25 M3
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
6070*1880*2619(L*W*H)
Operating Weight:5830kg
Bucket Capacity:0.072--0.25m3
Swing Speed 10rpm
Ground Pressure 34kpa
Bucket Digging Force 36.7 Kn
Arm Digging Force:26.1 Kn
Travel Speed 4.0/2.5km/H
Cooling Systemt15 L
Fuel Tankt125 L
Bucket Widtht750 mm
Batteriest1X12V
Transport Package
Load 2 Units in One 40hq Container
Specification
CE, ISO9001
Trademark
CARTER
Origin
Shandong, China
HS Code
8429521200
Production Capacity
400 PCS/Year
Product Description

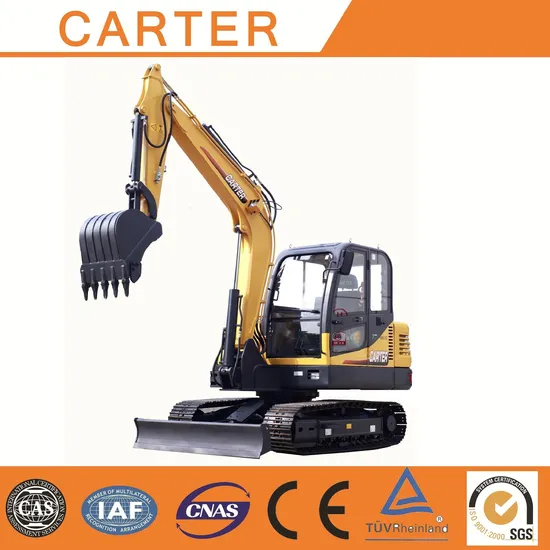

CT60-9 excavator,Yanmar Engine. It adopts new cab with noise insulation seals. It adopts new seat, new armrest and safety lock, and the harness adopts waterproof plug-in unit, which improves the comfortableness and reliability and improves the operation environment. The new CPU has artificial intelligence and automatic diagnosis function, which can avoid long-time engine running and reduce fuel consumption. The boom joint adopts whole casting steel structure which improves the overall strength and strengthens the working devices. And the tension device is also improved.| Engine | Travel System | ||||||||||
| Model | Yanmar 4TNV94L-BVBKCC | Travel motors | KYB, Japan; | ||||||||
| Type | Direct injection, water cooled, natural intake | Support roller quantities | 2×5 | ||||||||
| Carrier roller quantities | 2×1 | ||||||||||
| No. of cylinder | 4 | Travel shoes | 2X37 | ||||||||
| Bore and stroke | 94X110(mm) | Travel speed | 2.5/4.0(km/h) | ||||||||
| Displacement | 3.054L | Drawbar pulling force | 50.4kN | ||||||||
| Power output | 36.2kw/2100rpm | Gradeability | 58%(300) | ||||||||
| Max. torque | 193.2~210.6N.m/1260±100 rpm | Ground clearance | 362mm | ||||||||
| Hydraulic System | Cab & Electrical System | ||||||||||
| Pump | KYB, Japan | Cab | installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system | ||||||||
| Type | axial piston pump+ gear pump | ||||||||||
| Max. discharge flow | 2X59.2+42.2(L/min) | ||||||||||
| Max. discharge pressure | |||||||||||
| Boom, arm and bucket | 24.5 MPa | Voltage | 12V | ||||||||
| Travel circuit | 18.6 MPa | Batteries | 1x12V | ||||||||
| Swing circuit | 20.5 MPa | Battery capacity | 80Ah | ||||||||
| Control circuit | 3.9 MPa | Boom, Arm & Bucket | |||||||||
| Pilot control pump | Gear type | Boom cylinder | Φ110xΦ65xS720-L1095 | ||||||||
| Main control valves | KYB, Japan | Arm cylinder | Φ85xΦ55xS880-L1280 | ||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Φ80xΦ50xS600-L925 | ||||||||
| Swing System | Refilling Capacity & lubrication | ||||||||||
| Swing motor | KYB, Japan | Fuel tank | 125 L | ||||||||
| Swing motor type | Axial-piston motor | Cooling system | 15 L | ||||||||
| Brake | Hydraulic oil released | Engine oil | 10.5 L | ||||||||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 78 L Tank Oil Level | ||||||||
| Swing speed | 10 r/min | 120 L Hydraulic System | |||||||||
| Bucket | |||||||||||
| Type | Backhoe bucket | ||||||||||
| Bucket capacity | 0.22m3 (SAE) | ||||||||||
| Bucket Capacity scope | 0.072-0.25m3 | ||||||||||
| Number of bucket teeth | 5 | ||||||||||
| Bucket width | 750 mm | ||||||||||
| Working Ranges | |||||||||||
| Boom length | 3050mm | ||||||||||
| A | Max. digging depth | 3875mm | |||||||||
| B | Max. dumping height | 4064mm | |||||||||
| C | Max. digging height | 5754mm | |||||||||
| D | Max. vertical digging depth | 2900mm | |||||||||
| F | Max. digging distance | 6245mm | |||||||||
| G | Max. digging reach at ground level | 6100mm | |||||||||
| H | Min swing radius of work equipment | 2555mm | |||||||||
| Digging Force (ISO6015) | |||||||||||
| Arm length | 1600mm | ||||||||||
| A | Bucket digging force | 36.7 KN | |||||||||
| B | Arm digging force | 26.1 KN | |||||||||
| Overall Dimensions | |||||||||||
| A | Overall length | 6070mm | I | Track grounding length | 2000mm | ||||||
| B | Ground contact length | 3375mm | J | Track length | 2665mm | ||||||
| C | Overall height(to top of boom) | 2128mm | K | Track gauge | 1480mm | ||||||
| D | Overall width | 1880mm | L | Track width | 1880mm | ||||||
| E | Overall height(to top of cab) | 2619mm | M | Track Shoe width | 400mm | ||||||
| F | Counter weight ground clearance | 780mm | O | Bonnet height | 1696mm | ||||||
| G | Min Ground clearance | 362mm | P | Revolving frame width | 1785mm | ||||||
| H | Tail swing radius | 1775mm | Q | Distance from swing center to tail | 1700mm | ||||||
| Operating Weight and Ground Pressure | |||||||||||
| Operating weight includes basic machine; | |||||||||||
| Operating weight | 5830 Kg | ||||||||||
| Ground pressure | 34 KPa | ||||||||||
