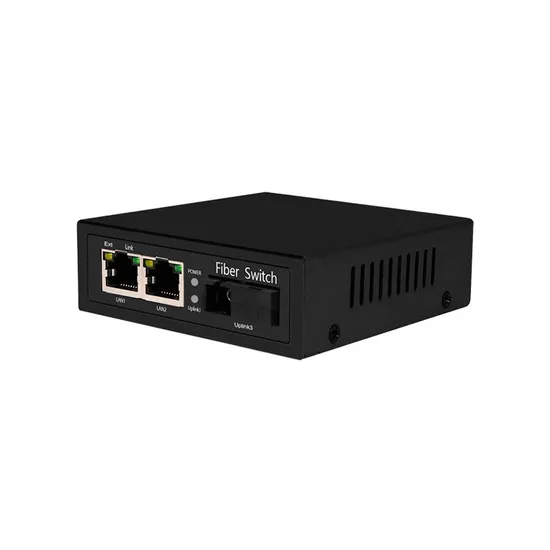

1 Gigabit Fx and 2 1000base-Tx Poe Switch

Product Description

Fibridge F6C-5800-2GT2S series network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 2* 10/100/1000 Mbps Ethernet interface and 2*Gigabit FX ports. The device is built-in power module, you can choose 220V AC input or 12V DC input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is -20ºC to +55ºC,10%~90%(no condensation).
The switch has metal casing, outstanding thunder proof function. Instant plug and use makes the application easy and fast.
Product Features IEEE802.3i/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage-and-forward
Meet the requirements of reliable work in harsh electrical environment
Support port mirror
Support flow control
Support storm control
Support QOS
Support IPv4, IPv6
Support IP/MAC/Port bunding
Support static routing
Support overload protection
Support reverse connection protection
Support optical port hot plug
IP 40 protection level
Industrial and modular design ensures the product's reliability and flexibility
The switch supports PoE, outputs 4*AF/AT, supports PoEdog
ISO9000 qualified
Pass test by Ministry of Public Security
Obtain network qualification certificate

Detailed Photos
Product Parameters

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	IEEE 802.1q VLAN
Backplane bandwidth	16 Gbps
Packet Forwarding Rate	4.32 Mpps
MAC address table	2K
High speed buffer	2.5M
PoE standard	802.3 af/at
Management	None
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -20ºC to +55ºC Storage temperature: :-40ºC to 85ºC Working humidity:10%~90% RH No condensation Storage humidity: 5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply, DCDC48~56V 1.5A External power supply(PoE) DC12V 1A External power supply
MTBF	≥100000 hours

Ordering Information

Model	Port	Management
F6C-5800-2GT1S	2*10/100/1000M Ethernet RJ45 ports 1*1G optical ports	N/A

Business Terms Price is FOB Beijing, 1 year warranty.
Price doesn't include SFP module.

About Fibridge Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc. Packaging & Shipping
