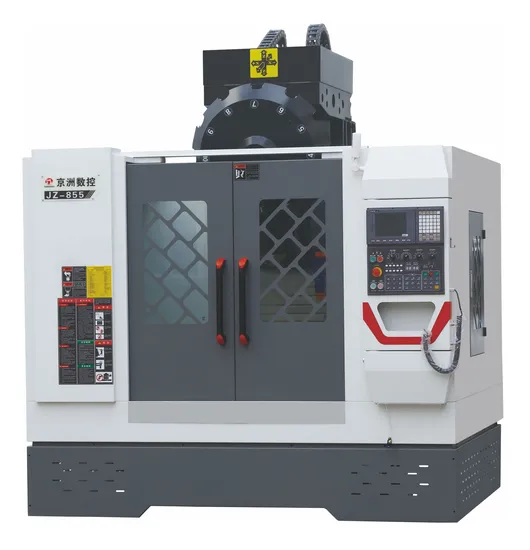

Hot Selling CNC Machining Center 855-12 3 Axis Milling Machine/Cutting Machine/Lathe/Horizontal Machining Center

Product Description

Efficient Taiwan new generation bus three-axis motor drilling and milling center machine
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
The machine tool is made of high-strength resin sand casting, and themachining center has a wide guide railbase. The screw rod is a 3210/4010double nut ball screw, driven by an ACservo motor.
The machine tool has good rigidity andhigh precision stability. The system isequipped with RS232 communicationinterface, which is suitable for processingvarious small and medium-sized partswith high precision requirements andcomplex shapes.
The system comes standard withTaiwan's new generation
Product Parameters

Staging	Workbench size (W*L)		mm	1200x500
	T-shaped groove on workbench			Three grooves
	grooves pitch		mm	175
	groove width		mm	18
	Max load		KG	400
Main shaft	Spindle speed		rpm	8000(12000,3500)
	Spindle power		kw	7.5kw(11kw)
	Spindle taper hole			BT40
	Distance from workbench to spindle end face		mm	150-550
Feed	Quick movement	X axis	m/min	30
		Y axis	m/min	30
		Z axis	m/min	30
	Travel	X axis	mm	800
		Y axis	mm	550
		Z axis	mm	420
	Feed rate		mm/min	10000
ATC	Knife handle type		ST	BT40
	Tool magazine		ea	12(16)(21)
	Maximum drilling diameter		mm	35(50)
	Maximum tapping diameter		mm	24(27)
	Maximum milling cutter diameter		mm	120
	Tool change time(knife to knife)		S	1.2
	Repeatability		mm	±0.003
Barometric pressure			kgf/cm2	6
Power supply quantity			Kva	25
MACHINE SIZE			mm	2350x2280x2500
Machine weight			KG	5500

Detailed Photos

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
