Fish-Bone Floor CNC Grooving Machine for Bamboo Laminated Floor

Product Description

Product Description
The slotting machine adopts high accuracy double-chain continuous feeding method. The floor will be conveyed to slot position after being feeding with designed angle, and the floor will be processed after going through the cutter. The convey chain and pressed line send the fish-bone joint floor out, and goes to the discharging device. In order for being used for different fish-bone floor with different length or angles, the slotting machine is designed for moving horizontally, and the moving is adjust by touch to input the length and angle you need. It is moving and positioning automatically. The moving is driven by motor with accuracy to 0.01mm.
The fish-bone floor after processing can satisfy customer' requirement for floor size and angle, and there is no angle collapse or edge warping. The cutter with 6+6 structure can also finish the processing of inter-locker shape.
We aim to satisfy the flooring process requirement for both domestic and oversea customer with accurate, reliable and efficient machine, and we can customize special machine according to your customer's requirements
Product Parameters

Machine Technical Specification
Cutter shaft structure	4+4(6+6)
Feeding Speed(m/min)	5-40
Floor Width(mm)	60-500
Floor(mm)	320-1200
Floor Thickness(mm)	4-25
Material feeding height(mm)	1100
Cutter shaft motor power(Kw)	6.2-10
Max rotate speed of cutter shaft motor(rpm)	6000
Cutter shaft motor diameter(mm)	φ40
Cutter diameter(mm)	φ250-285
Shape size(mm)	6900X2920X1854
Processing material	solid-wood, laminated wood, bamboo laminated floor, SPC, WPC and LVT, etc
Floor processing angle	30°,45°,60°, 90° and fish-bone joint floor with any angle degree.
The specification above can be designed and adjust according to customer needs. We may update the specification above, the actual specification will be finalized after confirm with customer.

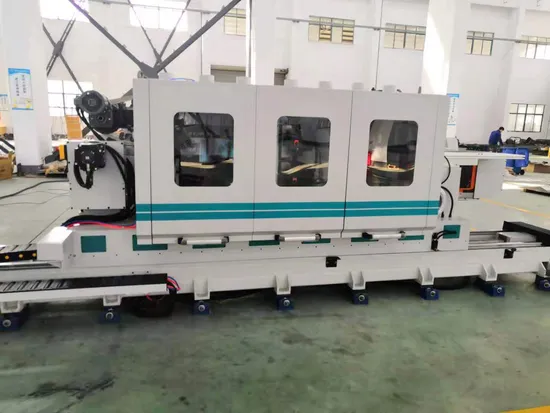

Detailed Photos
Recommended products

Company Profile
1.General Information
Changzhou Faer Lin Precision Machine Co., Ltd. is located in Bingjiang economic development zone, new north district, Changzhou , Jiangsu, China. The whole plant area is 30006m2 with 15000m2 construction area.
Our business grows dramatically during the past 5 years that the sales revenue develops from RMB 5 million in 2012 to RMB 50 millions around in 2016.
The company was evaluated as Jiangsu high-technology enterprise in 2015, that we have 22 high-technology products and more than 20 patented technologies.
Faer Lin is dedicated to build first-class technology developing system and train a expert team, in order to produce reliable automatic line and CNC special machine with high accuracy and high efficiency.
2.Company Team
Our shareholders and management team members are excellent talents from Jiangsu Duoleng CNC machine Co., Ltd.(Former was Changzhou General Machine Factory) who has more than ten years good experience in state-owned company management, product design, sales, R&D, manufacturing process and production. These excellent talents ensure we can have smooth and health development. Currently, we have 70 employees, 2 of them are certified with senior professional title, 21 with medium-grade professional title and 25 with junior professional title. It helps us to have capability to develop and manufacture first-class CNC machine and special machine.
We run and manage the company according to joint-stock company requirement since it was founded. We have clear and reasonable organization, which make sure our company operate efficiently and smoothly.
Certifications
FAQ
1.MOQ
1 set
2.DELIVERY TIME
It depends on the machine and model you choose.All machines are 100% new and not used.
3.How can I choose the most suitable machines?
Please tell me the machine type or parameter you are interested in, we can quote you the best price.You can also tell us the materials and size of the workpiece, or send us product pictures that you will process, we will choose the most suitable machine for you.
4.Do you provide after-sales service?
Of course. One-year warranty.
5.Are you a factory or trading company ?
We are a manufacturer factory
6.Why choose cooperate with us ?
Reliable Quality and All components from world leading suppliers ;
Cost-effective export infrastructure and total supply chain management ;
7.How does your factory do regarding quality control ?
Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.
