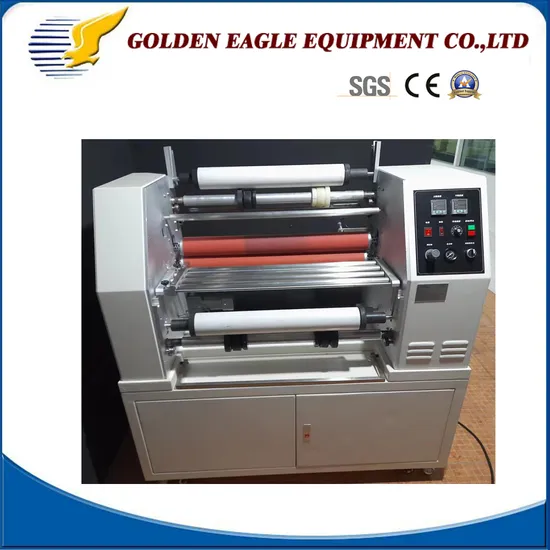

Dry Film Photoresist Laminating Machine for PCB
| US$9,850.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GE-D650
Foundation Plate Size
Long: 250~610mm
Width
250~ 650mm
Thick
0.05~3.2mm
Dry Film Size
Width: 250~610mm, 15~75um
Electricity Heater
2kw/220V; 2PCS
Heat-Press Roller Diameter
78mm * 2PCS
Air Pressure System
3-5kg/ C
Exhaust System
12/Min, 4× 1
Machine Weight
220kgs
Transport Package
Standard Export Wooden Case
Specification
CE
Trademark
GOLDEN EAGLE
Origin
China
HS Code
84862090
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
90.00cm * 120.00cm * 160.00cm
Package Gross Weight
180.000kg
Product Description
Dry Film Photoresist Laminating Machine for PCB Product DescriptionFeatures:
1. This state-of-the-art laminating machine is expertly designed for the precision application of photoresist dry film, essential in both the PCB industry and metal parts processing sector. It ensures a flawless coating of the dry photoresist film onto metal plate surfaces.
2. Equipped with an advanced automatic temperature control system and a dynamic speed adjustment mechanism, this machine effortlessly adapts to varying process requirements.
3. Enjoy exceptional adhesion and a bubble-free finish with this machine, providing high strength and uniform heat distribution for optimal results.
4. Benefit from its high precision and user-friendly operation, making it ideal for professionals seeking efficiency and ease.
Product Parameters
| Machine Name:Dry Film Laminator | |
| Power | AC220V/ 50/60HZ/15A |
| Foundation plate size | Long:250~610mm Thick:0.05~3.2mm Width:250~ 650mm |
| Dry Film Size | Width:250~610mm |
| Outsize/ Weight | L830×W1125×H1520mm / 220kg |
| Electricity Heater | 2KW/AC220V 2PCS |
| Heat-press roller | Diameter:¢78mm * 2PCS |
| Press film temperature | 50ºC-150ºC±2ºCAdjustable |
| Air Pressure system | 3-5kg/ cm3 |
| Exhaust system | 12 m2/min, ¢4″×1 |
Detailed Photos
