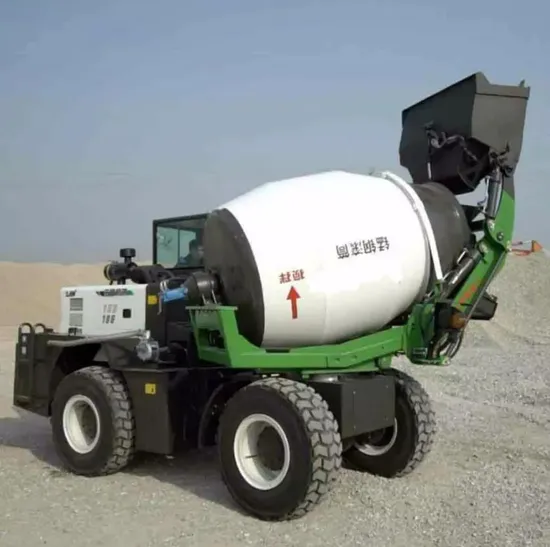

2m3 - 4m3 Concrete Mixer Truck Self Load Low Price for Sale
| US$19,000.00-19,800.00 | 1 Piece (MOQ) |
Basic Info.
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
35m²/h
Feeding Height
1380mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Blue
Transport Package
Nude
Specification
7910x3016x3515
Trademark
Oriemac
Origin
China
Production Capacity
350units/Month
Product Description
| SELF-LOADING CONCRETE MIXER | OM1500 | OM2500 | OM3000 | OM4000 |
| TYPE | Integral frame chassis movable, self loading, mixing, transporting | Integral frame chassis movable, self loading, mixing, transporting | Integral frame chassis movable, self loading, mixing, transporting | Integral frame chassis movable, self loading, mixing, transporting |
| PRODUCTIVITY | BATCH≤15MINS, 4BATCHS/HOUR | BATCH≤15MINS, 4BATCHS/HOUR | BATCH≤15MINS, 4BATCHS/HOUR | BATCH≤15MINS, 4BATCHS/HOUR |
| DRIVE | 4 x 4 | 4 x 4 | 4 x 4 | 4 x 4 |
| STEERING | Front steering | Front steering | Front steering | Front steering |
| ENGINE | YUNNEI ENGINE: FOUR-CYLINDER 2200RPM,58KW | YUNNEI ENGINE: FOUR-CYLINDER 2200RPM,76KW | YUCHAI ENGINE: FOUR-CYLINDER 2200RPM,85KW | YUNNEI ENGINE: FOUR-CYLINDER 2200RPM,92KW |
| SPEED | HIGH SPEED: 30KM/H; LOW SPEE:4KM/H | HIGH SPEED: 32.5KM/H; LOW SPEE:5.5KM/H | HIGH SPEED: 36.5KM/H; LOW SPEE:6.5KM/H | HIGH SPEED: 36.5KM/H; LOW SPEE:6.5KM/H |
| GEAR NUMBER | Three forwards, three backwards | Three forwards, three backwards | Three forwards, three backwards | Three forwards, three backwards |
| TIRE | 23.5-16 (Steel wire tyre) | 23.5-16 (Steel wire tyre) | 16/70-20 (Steel wire tyre) | 16/70-20 (Steel wire tyre) |
| DRUM | Geometric volume 2.2 cubic meters, the best stirring 1.2-1.5 cubic meters | Geometric volume 3.6 cubic meters, the best stirring 2.2-2.5 cubic meters | Geometric volume 4.2 cubic meters, the best stirring 2.6-3 cubic meters | Geometric volume 5.5 cubic meters, the best stirring 3.5-4 cubic meters |
| MIXING DRUM 270°DISCHARGES | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| SHOVEL | shovel capacity: 0.35³ | shovel capacity: 0.35³ | shovel capacity: 0.35³ | shovel capacity: 0.55³ |
| BUCKET DISCHARGE SWITCH | Hydraulic gate, electric control | Hydraulic gate, electric control | Hydraulic gate, electric control | Hydraulic gate, electric control |
| OPERATION HANDLE | ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE | ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE | ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE | ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE |
| WATER SUPPLY | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. | HYDRAULIC DRIVING SELF-PRIMIING PUMPS. |
| WATER TANK CAPACITY | 240L | 370L | 370L | 520L |
| DIESEL TANK CAPACITY | 110L | 180L | 180L | 180L |
| WHOLE WEIGHT | COMPLETE VEHICLE KERB MASS 5600kg | 6600KG | 6800KG | 7600KG |
