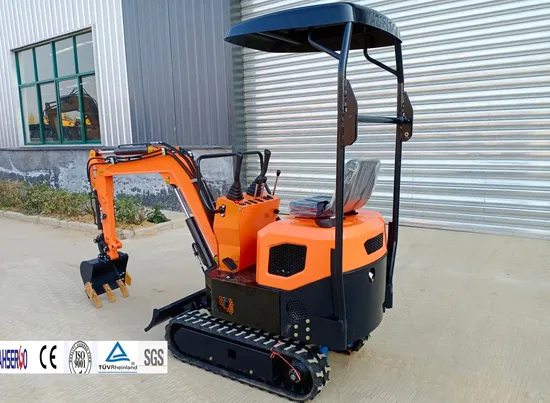

China Earthmoving Machine 800kg Mini Hydraulic Crawler Excavator Euro V Engine

China Earthmoving Machine 800kg Mini Hydraulic Crawler Excavator Euro V Engine

US$3,700.00
1-3 Pieces
US$3,500.00
4+ Pieces

Basic Info.

Model NO.
ASG08
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Nude; Container
Specification
3.62CBM
Trademark
AHSERGO
Origin
China Shandong
HS Code
8429521200
Production Capacity
3000

Product Description

Product Description
The mini excavator adopted the KOOP engine with EURO V emission, the machine installed the hydraulic hammer pipeline for you to use the hydraulic hammer, compact, light and small return radius, are its unique structural features.

Product Parameters
Engine Travel System
Model KOOP( KD192F-1) Travel motors SMT310
Type Direct injection, air cooled, natural intake Support roller quantities 2×2
Carrier roller quantities 0
No.engine cylinder 1 Travel speed 1.9(km/h)
Bore and stroke 92x75 Drawbar pulling force 8.3KN
Displacement 0.499 Gradeability 58%(300)
Power output 7kw/3000rpm Rubber track width 180mm
Max. torque 27N.m/2200rpm Rubber track Thickness 40mm
Hydraulic System
Pump 2ZGPA0D6S0L0
Type Gear pump
Max. discharge flow 18 (L/min)
Max. discharge pressure
Boom, arm and bucket 16MPa Voltage 12V
Travel circuit 16 MPa Batteries 1X12V
Swing circuit 16 MPa Battery capacity 45Ah
Main control valves DL80
Oil cooler Air cooled type
Swing System Refilling Capacity & lubrication
Swing motor OMR200 Fuel tank 7L
Swing motor type gerotor motor Cooling system No
Brake No Engine oil 1.2L
Parking brake No Hydraulic oil tank 14.5L Oil Tank Level
Swing speed 13 r/min 21.5L Hydraulic System
Bucket
Type Backhoe bucket
Bucket capacity 0.023m3
Number of bucket teeth 3
Bucket width 400 mm
Working ranges
Boom length 1480m
A Max. digging height 2550mm
B Max. dumping height 1687mm
C Max. digging depth 1787mm
D Max. vertical digging depth 1626mm
E Max. digging distance 3077mm
F Max. digging radius at ground level 2992mm
G Min swing radius of work equipment 1483mm
Digging Force
Arm length 800mm
A Bucket digging force 7.2 KN
B Arm digging force 4.6 KN
Overall Dimensions
A Overall length 2876mm I Track grounding length 900mm
B Ground contact length(Transportation) 2611mm J Track length 1233mm
C Overall height(to top of boom) 1040mm K Track gauge 670mm
D Overall width 840mm L Track width 840mm
E Overall height(to top of cab) 1495mm M Track Shoe width 180mm
F Counterweight ground clearance 385mm O Counterweight height 794mm
G Min. Ground clearance 132mm P Revolving frame width 760mm
H Tail swing radius 800mm Q Distance from swing center to tail 795mm
Operating Weight and Ground Pressure
Operating weight includes basic machine
Operating weight 850kg
Ground pressure 20 KPa

Detailed Photos

Packaging & Shipping
After Sales Service
FAQ
