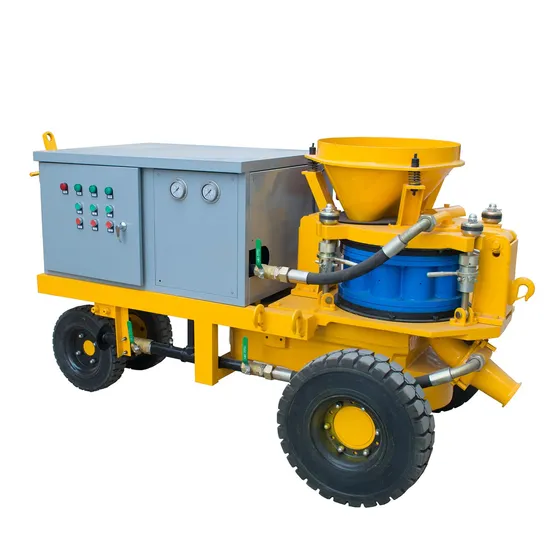

Lsz3000e Underground Coal Shotcrete Machine
| US$5,000.00-12,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LSZ3000E
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
5m3/H
Feeding Height
1.17m
Certification
ISO9001: 2000, CE, SGS
Condition
New
Color
Customized
Product Name
Wet Shotcrete Machine
Drive Mode
Electric Motor
Max. Horizontal Conveying Distance
35m
Max. Aggregate Size
15mm
Concrete Slump
8 -15cm
Conveying Hose Inner Diameter
51/ 64mm
Operating Air Pressure
0.3-0.6MPa (43-86psi)
Air Consumption
10~ 12m3 /Min
Main Motor Power
7.5kw(10HP)
Dosing Pump Output
17.5 -88L /H
Rotor Speed
11r/Min
Transport Package
Plastic Wrap, Plywood Case, Free-Fumigation
Specification
2.05*0.95*1.18m
Trademark
Leadcrete
Origin
China
HS Code
84743100
Production Capacity
5000 Sets/Year
Product Description
LSZ3000E Underground coal shotcrete machine1. Description:
LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
The machine is suitable either for manual spraying or by means of a robotic arm.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. Application:
LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
3.Product Parameter:
| Drive type | electric motor drive |
| Rated Output | 5m3 /h |
| Max. Horizontal Conveying Distance | 35m |
| Max. Aggregate Size | 15mm |
| Concrete Slump | 8 -15cm |
| Conveying Hose Inner Diameter | 51/ 64mm |
| Operating air Pressure | 0.3-0.6MPa (43-86PSI) |
| Air Consumption | 10~ 12m3 /min(357-430CFM) |
| Main Motor Power | 7.5kW(10hp) |
| Dosing Pump | LH-15 |
| Dosing Pump Rated Pressure | 0.6MPa(86PSI) |
| Dosing Pump Output | 17.5 -88L /h |
| Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
| Material Charging Height | 1.17m |
| Rotor Speed | 11r/min |
| Overall Dimension(L × W × H) | 2.05× 0.95× 1.18m |
| Net Weight | 1200kg |
3. Features:
It can both for dry and shotcrete concrete spraying.
