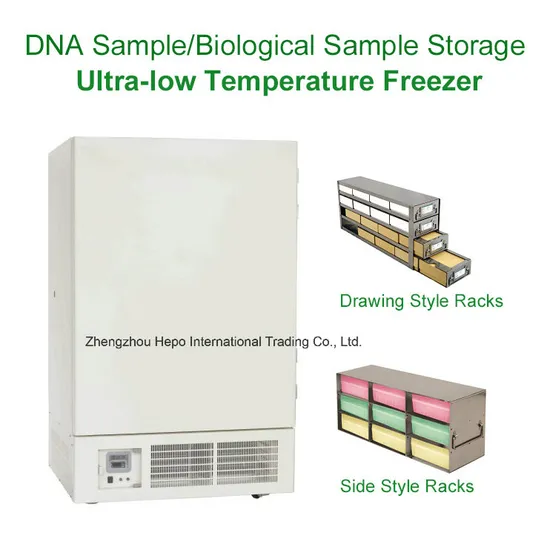

Chinese Large Capacity Energy Saving Upright Deep Cooling Freezer

Product Description

These Deep Freezer are HEPO new developed products for freeze and storage high valued products,such as DNA sample storage,Biological Products,etc.Dual refrigeration systems means one refrigeration system work as regular,the other system acts as back up system to make sure the freezer can work as well once one system failure.It can be used for storage virus,germs,blood plasma,blood,skin,bone marrow,sperm,biology product,oceanic product and others.It can be applicant to research institute,chemical ,electronics,piscatorial and marine fishery.
Prices Temperature controlling
Dixell or equivalent brand micro computer control system,PT100 sensor;
Inner temperature range in -40ºC to -86ºC,digital temperature display,LED display;
Using high accuracy sensor to control,display,and warning.
Safety Functions
Self checking function for clearing of fault in short time;
Password protect function,frequent start protection,the refrigeration system can keep working once there is matter for temperature sensor failure;
Warning system for high and low temperature,sensor failure etc;
Warning mode with buzzer,light flashing;
Time-delay prevention when starting up in case of overload currency rushing;
The temperature for start-up or shut-down can be set accordingly.
Refrigeration System
Dual refrigeration systems,one refrigeration system work as regular,the other system acts as back up system to make sure the freezer can work as well once one system failure;
Full sealed SECOP or equivalent compressor,100% CFC free high efficiency refrigerant;
Using high efficient evaporator and condensation,EBM fan,quickly freezing and low energy consume,excellent cooling system design,freezing quickly,saving energy style;
Thickness(100mm to 130mm) and high density foaming layer thermal raw material used to keep better thermal effect than regularly;
New and environment friendly raw material used.
Humanized design :
Solid door designing,with safety lock and key,better thermal effect ;
Automatic rebound iron hinges designing;
Whole stainless steel inner wall and shelves;
LED digital display,convenient to watch;
Frost free design,easy to defrost and clean;
Inner LED lighting design;
Wide range of voltage design,range from 187~242 volts,50HZ/60HZ(Optional).
Optional:Temperature recorder,professional large door handle for outer door opening easily.
Main Technical Parameters:

Model	Capacity	Temp	External Size	Power	Climate	N.W.
HP-86U30	30L/1.1Ft	-40 ~ -86 ºC	470*490*1120	350w	N	60kgs
HP-86U50	50L/1.8Ft	-40 ~ -86 ºC	540*620*1115	450w	N	75kgs
HP-86U160	160L/5.7Ft	-40 ~ -86 ºC	700*700*1580	630w	N	130kgs
HP-86U400	400L/14.1Ft	-40 ~ -86 ºC	850*930*1950	750w	N	230kgs
HP-86U600	600L/21.2Ft	-40 ~ -86 ºC	940*950*1920	1600w	N	380kgs
HP-86U950	950L/33.5Ft	-40 ~ -86 ºC	1240*1000*2000	1700w	N	320kgs
DW-86L500	500L/17.7Ft	-40 ~ -86 ºC	880*940*1930	1000w	N	400kgs
DW-86L630	630L/22.3Ft	-40 ~ -86 ºC	1090*940*1930	1200w	N	430kgs
HP-86U345	345L	-40 ~ -86 ºC	860*1010*1960	650W	SN&ST	195kgs
HP-86U345P	345L	-60 ~ -86 ºC	860*1090*1910	1350W	T	200kgs
HP-86U350	350L	-60 ~ -86 ºC	860*1090*1910	1350W	T	200kgs
HP-86U350P	350L	-40 ~ -86 ºC	900*1080*1910	1350W	ST	205kgs
