Spreader Beam and Lifting Bar for Construction

Product Description

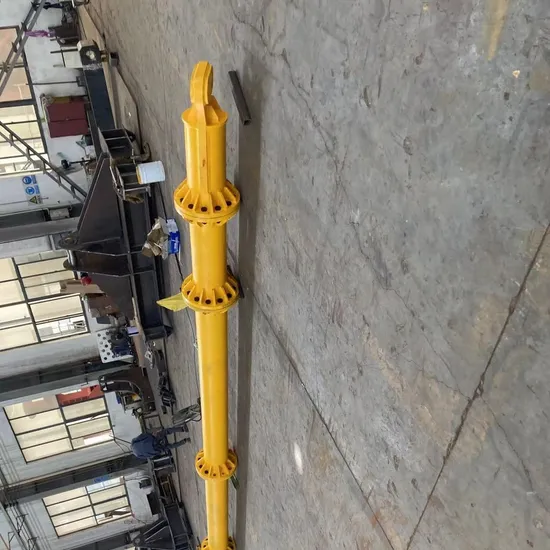

Spreader beam and lifting bar for construction
To know us
Gostern Rigging Co., Ltd.Is established in the year of 2001 in China.The company covers an area of 33000 square meters, more than 600 employees.It is a specialized slings company which can design, manufacture and market.
Our main products are steel wire ropes, wire rope slings, synthetic fiber belt slings, nylon braided ropes, chain slings, steel plate lifting clamps, metallurgy clamps, hanging beams, rigging accessories and so on.The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.The perfect performance has been highly appraised by Users.
Specification of our products


This semi auto container spreader is easy to operation. when loading ,the middle rope of the spreader will be strained and the pins will turn around and lock the container. Semi-automatic spreaders are fixed to the hooks of gantry, bridge and portal cranes. Container Spreader Features 1. Light weight 2. Semi automatic 3. Designed for use with cinventional ships and harbour cranes 4. Reliable with simple locking/unlocking mechanism and all four twist lock activated throught one manually operated handle 5. Suspendend on the crane by two wire ropes 6. The spreader shall have corner guides as detacheable flippers Available with no impetus container spreaders, semi-automatic container spreader, telescopic container spreader, empty container spreader box, doublecontainer spreader, container spreader devices and so on.
2:technical data automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.

Item	20'	40'
Rated SWL	25-35T	32-45T
Max. SWL	40T	50T
Dead Weight	1.2-2.6T	1.2-2.6T

2.Overall Dimensions

Item	20'	40'
Distance between lock centers(length)	≈ 5853 mm	≈11985 mm
Distance between lock centers(width)	≈ 2260 mm	≈2260 mm
Overall Length	≈ 6058 mm	≈12188 mm
Overall Width	≈ 2610 mm	≈2610 mm
Frame Height	≈ 636 mm	≈731 mm

3. Technical Parameter

Item	20'	40'
Dia. of pressed wire rope slings	32 mm	36 mm
Length of pressed wire rope slings	3.5m per piece (4 pieces for each set)	8.5m per piece (4 pieces for each set)
Steel Frame	Material Q345B	Material Q345B

What we achieved
we have achieved many awards both domestic and worldwide.Pls see our achievements as bellow :



Our Difference
SATISFACTORY SERVICE
- Leatime 8-15 days
- 3 years warranty
- Varied packaging choice
-we welcome you to have a factory tour
Experience
- Long history in the sling area for almost 20 years
-sales volume increase to over 40 million per year


Plant view

lifting hanging bar for heavy duty and loading big capacity goods .such as constructure and inductry pump assembly .
Our service

1. Our factory provide machine testing when customer come to our factory to see this machine. 2. We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings. 3. We can provide engineers to customer's factory to help installation and training workers if customer required. 4.Spare parts is available when u need.within warranty,we will provide without any charge.Over warranty,we can provide spare parts just with factory cost.We will take response and provide technical support and repair of the whole machine lifetime.

To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 2-5 days, mass production time needs 1-3 weeks for order quantity more than one container
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1PC for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: Train and sea shipping both can provide. Shipping time depends on distance.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We offer you the ideal products and price .
Thirdly we strike the deal if everything goes well.
Fourthly We arrange the production.
Q6. Is it OK to print my logo and change package?
A: Yes. Please inform us formally before our production.we need comfirm with you the design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. We will do several inspection before we send to you.
