High-Efficiency 6kw Paper Cup Making Machine for Sale

Product Description

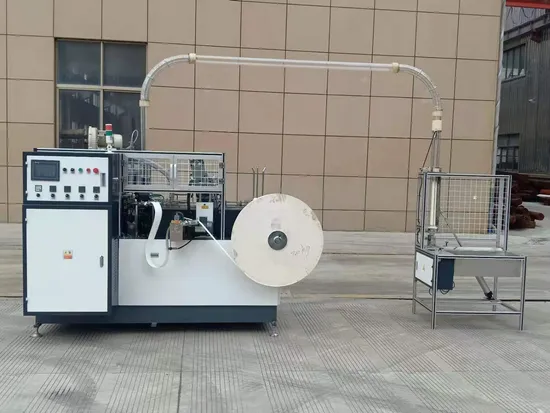

YB-12 Paper Cup Machine
------Quotation: YB-12 Paper Cup Machine FOB Ningbo.
------Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
------Delivery time: 30 days after receive the payment of deposit
------Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance
------Leave factory testing: before leaving factory, equipment should be tested by both parties. Test material offered by buyer
------Installation: we will send 1 technicians for machine's installation and debugging according to customer's requirement; the technician's board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD100.For each technician/one day, estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after getting the machine
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
------The buyer shall provide the facilities and preparations:(Delivery machine to finish)
------foundation and adapter power supply water and compressed air pipe and related projects
New paper cup forming machine is a fully automatic paper cup forming machine, which can automatically feed paper through multiple rows, paper anti-backing device (to ensure accurate positioning), ultrasonic welding, transfer of mechanical paper tube, oil injection, bottoming, folding bottom, Pre-heating, knurling, unloading and other continuous processes can stably produce paper cups of various specifications. It is a paper cup equipment independently researched and improved by our company to improve the stability of the whole machine.

Technical Parameter:
Paper Cup Size	4ML-16oz (Various molds can be replaced according to the actual capacity of the user.)
Paper used	150-350GSM
Speed of making paper cups	65-85pcs/min
Power Voltage	220V 50Hz or380V 50Hz
Total Power	4KW
Whole machine weight	1700KG
Size ( L X W X H)	2000x1000x1700mm

Multiple paper feeding Three times of paper feeding, multiple mediation, to avoid unevenness on both sides of the paper cup.
2.Photoelectric eye detection
The encoder and the optical eye control the machine at the same time, and a fan-shaped piece is equipped with a cup bottom to avoid waste.Fault alarm, automatic shutdown.
3.Automatic fueling system
The machine automatically refuels the positions that need to be refueled through the copper pipe, saving labor.
4.Slot wheel
The inside of the machine is connected by a sheave, and the parts are connected more closely. It is not easy to loosen during the operation of the machine.
Electrical configuration

Photoelectric 441 (Panasonic)

Button

Frequency converter (Haipu)

Small relay (Chint)

Solid State Relay (Taiwan, Yangming)

AC contactor (Chint)

Air Switch

Drain the bottom
In the past, the process of feeding the bottom paper to the bottom paper is prone to the bottoming phenomenon. The equipment is used to directly feed the bottom to the bottom, and the bottom is avoided in one step.
Delivery parts list:
Product name and quantity
1 copper head electric heating rod
One 10 inch sliding wrench
3 small springs
Heating and preheating 1 main hot ring each
2 heating pipes
Bearing 5204 + knurled wheel 1 set
1 set of Allen wrench
1 set of external hexagon wrench 8-10 12-14 17-19 22-24
6 foot screws M18
1 oil bottles
1 Measuring pencil
Company information
Any problem please contact me anytime!
