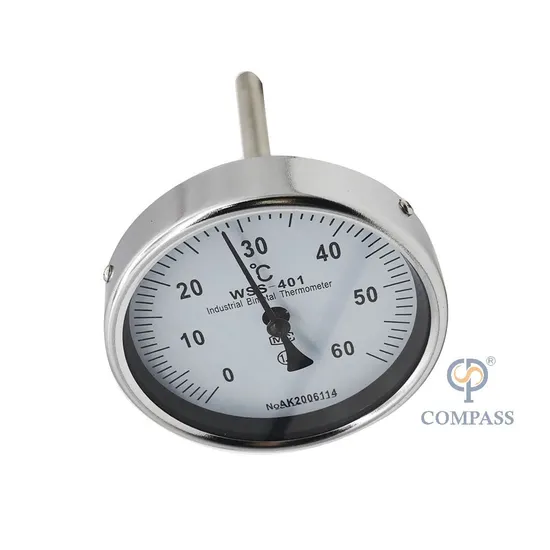

304 Sanitary Temperature Gauges 100mm Dial Face

Product Description

304 Sanitary Temperature Gauges 100mm Dial Face Product Description Industrial thermometers are field test industrial instruments, which are suitable for measuring medium and low temperature and can directly measure the temperature of gas, liquid and steam. They are widely used in petroleum, chemical, vessel, machinery, medical insurance, electric power and other industries, which are the replacement of glass thermometer products. Compared with thermocouple and RTD, they have the characteristics of field display, easy to use and low price.

Product Name	Temperature Gauge
Model	WSS, WSS-30/11,WSS-40/11,WSS-50/1
Specifications	1"-4"
Connection	Thread and flange optional
Dail	60/100/150mm
Stem diameter	6~12mm
Type	Raxial (Bottom Connection) Axial (Back Connection) Universal
Temperature	-80~500ºC
Application	industrial temperature measuring

Product Parameters

store

Usage and Maintenance

The bimetallic thermometer should be stored in a dry and ventilated room, and the indoor air should be clean and have no corrosive effect on the instrument. If the bimetallic thermometer is not installed immediately, please do not open the packaging, and the instrument should be protected from external damage during storage. The removed bimetallic thermometer should be isolated from moisture and dust, and it is recommended to use the original packaging material.

1. The length of the protective tube of a bimetallic thermometer immersed in the measured medium must be greater than the length of the temperature sensing element. Generally, the immersion length is greater than 50mm, and the immersion length in the 0-50C range is greater than 100mm to ensure measurement accuracy. During storage, use, installation, and transportation, bimetallic thermometers should avoid colliding with the protective tube, bending or deforming the protective tube, and using the case as a wrench. 2. Various types of bimetallic thermometers are not suitable for measuring the temperature of the medium inside open containers. Thermometers with charged contacts are not suitable for use in control circuits with high working vibrations.

Packaging & Shipping To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases. If heavy weight of cargo ,which be packed by strongly seaworthy ply-wooden cases . In order to protective items , which will be packed by safety and resistance to shock in ply-wooden cases
Contact Us If you have any inquiry or question for our valves, please kindly do not hesitate to let us know soon.
We also produce other valves and pumps, welcome to Xusheng here, we will try our best to quote you in competitive prices.

Company Profile XUSHENG & COMPASS are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food, beer, beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit. Here is our range of products as below.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve, diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump, screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type.
14 years experiences in design and good solution in food grade production line.
Competitive prices & High quality products to achieve win-win mutual benefits.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.

FAQ Q1. Are you a trading company or factory?We are a manufacturing factory.Q2. What's the payment terms?For small testing orders,we accept Paypal,Western Union,T/T and credit Card.For mass orders,we accept T/T and L/C.Q3.How do you control the quality?Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.Weonly have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.Q4.If there is any quality problem,how do you solve it?We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.Q5.How long is your delivery time?For normal production in 7-10days.For bulk order in 15-25days.Q6.WarrantyOne year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.
How to Order ? 1.What's model , such as FH01 or FH02 ?
2.What's material, such as SS304 or SS316L ?
3.Which size, the size is from 1.5"to 4"and from DN40 to DN100 ?
4.What's body combination, such as T11, T12, T21 or T22 ?
5.What's control head, such as 24V or 4-20mA signal ?
