PP PE Film Agricultural Film Industrial Film Printed Film Plastic Washing Machine

Product Description

PP PE Film Agricultural Film Industrial Film Printed Film Plastic Washing Machine
Application Areas:
Industrial Film Printing Packaging Plastic Film Recycling Crushing Washing Line of Wanrooetech is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films,PE waste film,PP waste film,PVC waste film,industrial film,printed film and etc.
Description:

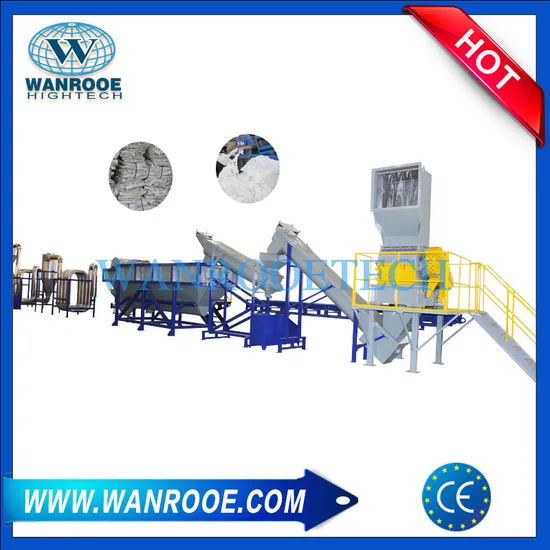

This PP PE Film Washing Line is widely used to treat PP/PE plastic waste mixed material into clean film flakes,which include waste PP woven bags, plastic bags, plastic garbage, waste plastic mulch film. After films cleaned, you can make them to be granules with next process which is called pelletizing line.This production line is high automatic operating and save labor cost and low after maintenance. With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad.
Features :
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution.
This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags to be the PP PE granules material and in order to producing new PP PE products.

Advantages:
1. Our price is competitive and we take responsibility to any quality uncertainty.
2. Our pursuit of first-rate quality, reasonable prices and comprehensive after sales services offers both potential and long-standing clientele confidence in our company.
3. High automation level producton line to reduce cost on labor and increase production.
4. Innovative design of hot washer and washing tank.
5. PLC control, Choose motor brand according to customer's requirements.
6. We use 304 stainless steel to produce machines which contacting water.
7. Professional design team to design every project according to cutomer's need
Details:
System Configuration:

NO.	Name	Unit
1	Belt conveyor	1 Set
2	Crusher (with water)	1 Set
3	High speed friction washer	1 Set
4	Floating washing machine	1 Set
5	Screw feeding machine	1 Set
6	Dewatering machine	1 Set
7	Pipe drying system	1 Set
8	Transportation blower	1 Set
9	Transportation pipe	1 Set
10	Storage Hopper	1 Set
11	Electric cabinet	1Set

Technical Parameters:

Model	Material	Install Power	Capacity	Water Consumption	End Products Humidity
PNQF-300	PP,PE	100kw	300kg/h	4-6litres/kg	<=5%
PNQF-500	PP,PE	150kw	500kg/h	3-6litres/kg	<=5%
PNQF-800	PP,PE	200kw	800kg/h	3-5litres/kg	<=5%
PNQF-1000	PP,PE	280kw	1,000kg/h	2-3litres/kg	<=5%

Notes: The above parameters will be changed if raw material contamination is different.
Our Service:
1. Our factory provide machine testing when customer come to our factory to see this machine.
2. We provide detail machine technical specification, electric diagram, installation book, operating manual3. We can provide engineers to customer's factory to help installation and training workers if customer required.
4.Spare parts is available when u need.within warranty,we will provide without any charge.Over warranty,we can provide spare parts just with factory cost.We will take response and provide technical support and repair of the whole machine lifetime.
Packing & Shipping
