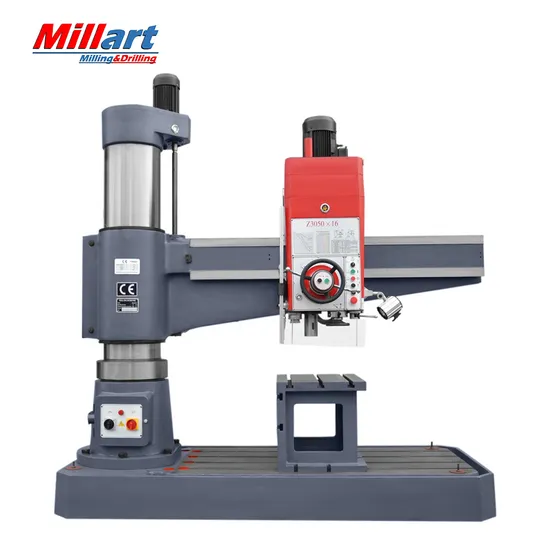

Universal Drilling Machine Z3050X16 Radial Drilling Machine
| US$2,000.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050X16
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle Travel
220mm
Drilling Capacity
50 mm
Spindle Cone(Mt)
5
Transport Package
Wood Case
Specification
CE ISO900 rohs
Trademark
L&T
Origin
Tengzhou China
HS Code
84592900
Production Capacity
100 PC/Month
Product Description
Universal Drilling Machine Z3050X16 Radial Drilling MachineFeature:
Gather mechanical-electrical-hydraulic functions, use extensively.
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability.
Main gears are machined by gear grinding, the machine ensuring high precision and low nois
Technical parameter:
| Model | Z3050X16 |
| Max. Drilling dia. (mm) | 50 |
| Distance from spindle nose to table surface (mm) | 260-1050 |
| Distance between spindle axis and column face (mm) | 360-1600 |
| Spindle travel (mm) | 200-220 |
| Spindle taper | 5 |
| Spindle speed range (rpm) | 78-1100 |
| Spindle feeding range (rpm) | 0.10-0.56 |
| Rocker rotary angle | 360 |
| Main motor power (kw) | 4 |
| Movement motor power (kw) | 1.5 |
| Net weight (kg) | 2800 |
| Overall dimension (mm) | 2170*950*2450 |
