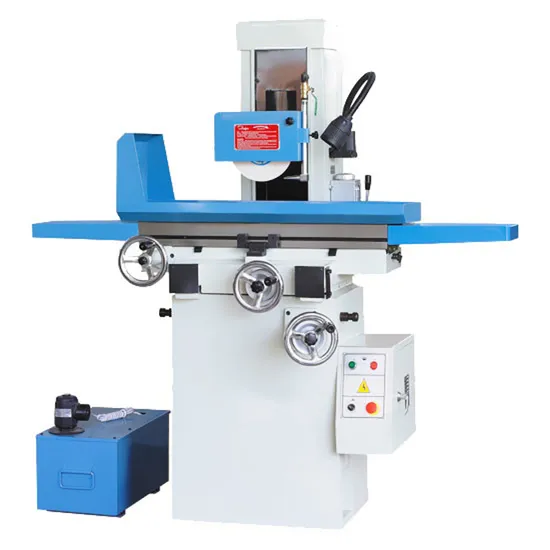

Small Metal Manual Surface Grinder Machine with CE Approved M820 M818A
| US$2,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M818A
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
155X460mm
Wheel Size
200X13X31.75mm
Longitudinal Travel
500mm
Cross Travel
185mm
Motor
1.5kw
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
MANUAL SURFACE GRINDING MACHINE FEATURES:
1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
3-axis manual operation, X, Y axis can be eletric auto operation.
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system
SPECIFICATIONS:
| TECHNICAL PARAMETERS | UNITS | M618A | M818A | |
| Max.work piece to be Ground( L×W×H) | mm | 500×190×335 | 470x220x350 | |
| Max. Grinding Length | mm | 500 | 470 | |
| Max. Grinding Width | mm | 190 | 220 | |
| Distance From Table Surface To Spindle Center | mm | 335 | 450 | |
| Slide way | V-type rail with Steel-ball | |||
| V-type rail with Steel-ball | Kg | 200 | ||
| Table Size (L×W) | mm | 460×180 | 210x450 | |
| Number of T -Slot | mm×n | 12×1 | 12x1 | |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | ||
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | ||
| Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | 200x13x31.75 | |
| Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
| 60HZ | 0-6000 | 3450 | ||
| Spindle Motor | Kw | 1.1 | 1.5 | |
| Coolant Pump | Kw | 0.4 | 0.5 | |
| Machine Size (L×W×H) | mm | 1550×1060×1590 | 1330x1150x1675 | |
| Packing Size (L×W×H) | mm | 1060×1170×1870 | 1400x1120x1985 | |
| Gross,Net | T | O.75, 0.65 | 0.8 | |
