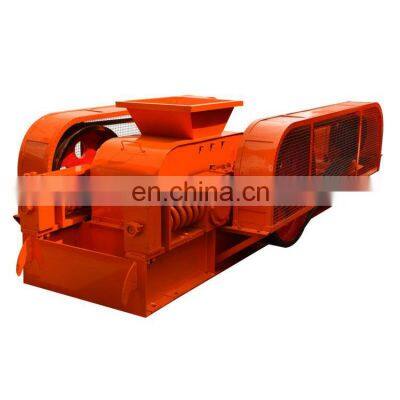

Small roll crusher/double roller crusher machine for sale

Product Description

Product Description
Production descriptionUsage and application of double roller crusher:1) Roll rusher has many names such as roller crusher, double-roller crusher and double-geared roller crusher. 2)The roller crusher is mainly made up of roller, supporting part of the bearing, clamping and adjustment means, drive device and so on. 3) This series of roll crusher can be used for the medium and fine crushing of all kinds ofores and rocks with high and medium hardness in many industrial departments such as ore beneficiation, chemistry, cement, refractory, abrasive materials and building materials. Double roller crusher working principle:1) the materials to be crushed fall from the feeding mouth to the space between the two rolls.2) after being squeezed and crushed, the final products will naturally fall.3)When there are too hard materials or materials that cannot be crushed, the rolls of the roller crusher will automatically withdraw under the effect of hydraulic cylinder or spring to increase the gap between the rolls, and the too hard materials or the materials that cannot be crushed will fall down.4)Thus protecting the machine from being damaged. There is a certain gap between the two rolls that rotate at the opposite direction, and the maximum discharging granularity of the final products can be controlled by changing this gap. 5)Double roll crusher crushes the materials by relying on the two round rollers rotating at the opposite direction, and four-roll crusher crushes the materials by relying on the two pairs of round rollers rotating at the opposite direction. Technical parametersTeeth roller crusher specifications: ModelFeed size(mm)Capacity(t/h)Power(KW)Weight(t)Discharge size(mm)153050751252PGC-450x50080-150150-300203580508514511x24.152PGC-400x60080-150150-3003050105708519015x24.62PGC-500x75080-150150-30042681458512025522x25.72PGC-600x90080-150150-300588018010014532030x27.22PGC-750x75080-200200-400 60801859014020537x2112PGC-900x90080-200200-40070100 22011018538045x213.82PGC-750x150080-200200-4008512520511018025045x2132PGC-750x180080-200200-40012015025017522038055x214.6 Packaging & Shipping Case Company Information
