Ultrafine/Universal/Coarse/Fine/Superfine/Grinding/Crushing/Milling Grinder Machine of Food, Flavoring, Pepper, Salt, Sugar

Product Description

China Ultra Fine/ Universal/Coarse/Fine/Superfine Grinder/Grinding/Crushing/Milling Machine for Food,Flavoring,Chemical,Pharmaceutical,Sugar,Salt,Coffee,Pepper,Vegetable,Fruit WFJ Super Fine GrinderProduct DescriptionDescription:

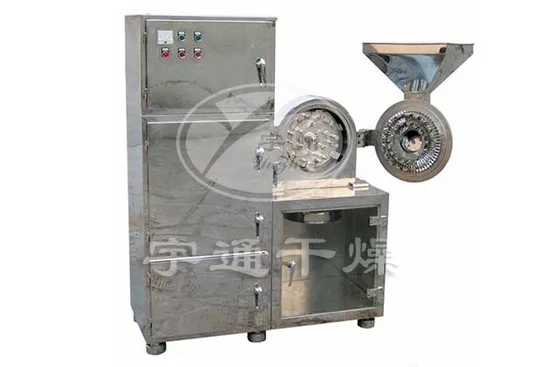

WFJ Super fine grinding machine is made up of main engine, auxiliary machine and electric control. The material is fed into the crushing chamber through a hopper, and is cut and sheared by the high speed cutters. Then the material is moved into the whirlwind separator and sack dust catcher by the negative pressure sucking method. The dust is collected and recycled via cloth bag or filter of dust absorption box. There is no dust flying during the production process of micro grinding machine so as to improve the utilization of materials.Features
1.The super fine machine features compact design and reasonable structure with wind option.
2.The ultra fine grinding machine is equipped with rating devices which makes a complete crushing and classification.Product ParametersParameters:

Model	Production Capacity (kg/h)	Feeding Size (mm)	Discharging Size (mesh)	Total Power (kw)	Main Speed (r/min)	Overall Dimensions (m)	Weight (kg)
WFJ-15	10 to 200	≤ 10	60 to 450	13.5	5800	4.2 × 1.2 × 2.7	1000
WFJ-18	25 to 600	≤ 10	60 to 450	19.3	5200	4.5 × 1.2 × 2.7	1500
WFJ-36	30 to 800	≤ 10	60 to 450	39.5	3800	6.4 × 1.5 × 3.8	2500
WFJ-60	50 to 1200	≤ 10	60 to 450	75.3	3200	7.5 × 2.3 × 4.2	3200
WFJ-80	100 to 1500	≤ 15	60 to 450	90.75	2800	7.5 × 2.5 × 4.2	4000
WFJ-100	150 to 2000	≤ 15	60 to 450	125	2400	8.5 × 2.7 × 4.2	5000

Note: Due to the differences in materials, output will be different.Our AdvantagesApplicationApplication:
WFJ Super fine grinding machine is widely used in pharmaceutical, chemical and food industries. It can be applied to chemical, food, medical, cosmetic, dyestuff and shell materials. Due to the negative pressure sends heat out continuously in operation, the machine is also applied for the grinding of heat sensitive materials.
Company ProfileJiangsu yutong drying engineering Co., Ltd. is a famous enterprises specializing in drying, mixing, granulating, griding and screen equipment of 20 years experience. Our company has passed authentication of ISO9001 and ISO14001 international quality system. Moreover, our products have acquired "high quality recommendation certificate" issued by American international quality authentication committee and "East China excellent technical product certificate" issued by Jiangsu science and technology association. Our company emphasizes visualization and create brand, so we have been evaluated as both "AAA' enterprise by Jiangsu international qualification company and "regard contract and keep faith" enterprise by industry and commerce department.Our company is located in a famous town of south of YANGTSE RIVER, Jiaoxi town, occupying over 18 unit of area with over 16000m2 building area. We have undeniable engineer and more than 100 sets equipments. Every year can produce about 2000sets equipments and also can develop more than 30 types which are selling to all the country, also to USA, England, Germany, Cyprus, Turkey, Thailand, Vietnam, Mexcico etc.Over the years, we do our best to develop the production of drying, mixer, granule equipment. We emphasize science and technology innovation, early or late we cooperate with many famous college. Now every year we can produce 3 new products, and our products have been accepted by more and more customers. Our company has developed so quickly that we have accumulated large amount of fund and technical knowledge. Our company stocks many stocks many kinds of trial machine for customer taking materials to test and examine.When developing outer market, our company emphasizes inner management. We have established local area network, developed fund flow, material flow, information flow software serving for our company. Furthermore, we figure employees' enterprise spirit of priding themselves on being a "Yutong" people. Our company really insist on such a tenet that science and technology is the first productivity, using honesty to get faith, using quality to get success. We in sprint of keeping good credit standing, we hold a firm belief customer is god, "You don't have and we have, you have and we will do our best to satisfy our customer, and Yutong and customer can get mutual benefit.
CertificationsSome other grinding machine for salt, sugar, pepper,coffee or product of food,flavoring,pharma,chemical etc are supplied too, pls contact us for more details.
