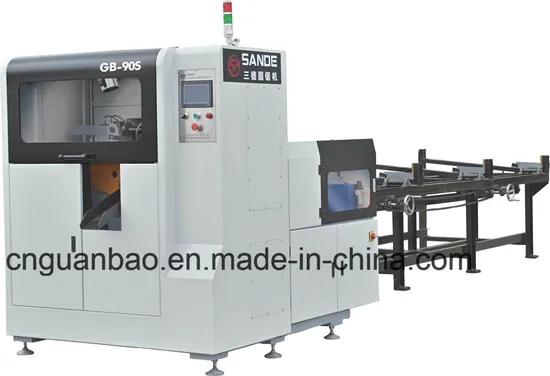

CNC Full Automatic Carbide High Speed Cutting Circular Saw Machine GB-90s
Basic Info.
Model NO.
GB-90S
Brand
Zodel
Type
Fixed
Power Source
Electricity
Customized
Customized
Condition
New
High Speed Cutting
CNC Circular Saw
Transport Package
Plywood Case
Specification
SET
Trademark
SANDE
Origin
Zhejiang, China
HS Code
84615000
Production Capacity
50sets/Month
Product Description
We Guanbao Industrial Co., Ltd. is majoring in band saw machine and circular saw manufctuering. Over 20 years production history, we will surely supply you good quality products with competitive price. We also have our design team, we can do OEM for you if need.Welcome to visit our website: cnguanbao.en.made-in-china.com for more details.
GB-90S detail technical data:
| 1 | Cutting capacity | Round bar | 20mm--90mm |
| Angle material | 20mm--60mm | ||
| Round tube | 20mm--72mm | ||
| Square tube | 20mm-60mm | ||
| Remnant material length | 55mm(min.) | ||
| 2 | Head Spindle | ||
| Application of TCT tungsten carbide circular saw blade | Φ315x2.0mm/Φ315x2.0mm | ||
| Application of HSS high speed steel circular saw blade | Φ250-Φ285/Φ2.0-2.5mm | ||
| Rotation number of cutter | 30-180rpm(stepless speed regulation) | ||
| Spindle driving motor | 7.5KW/6P variable frequency motor | ||
| Tool gap compensation device | Magnetic powder brake | ||
| Tool shock proof parallel block | Tungsten carbide | ||
| Tool chip cleaner | Round steel brush | ||
| Cut-off feeding way | Rock type/AC servo motor | ||
| Clamping way | Hydraulic/ Horizontal and vertical each one | ||
| 3 | Sizing Feeding (GFC) mechanism | ||
| Driving way | AC Servo motor/Precision ball screw | ||
| Clamping mode | Horizontal hydraulic | ||
| End cutting length | 8-99mm | ||
| GFC feeding amount | 4-550mm(single time)/9999mm(multi-times) | ||
| 4 | Automatic feeding device | ||
| Material length | 2000-6000mm | ||
| Material placing area | 980mm | ||
| Feeding way | Hydraulic lifting material | ||
| Angle material slip device | Optional | ||
| 5 | Hydraulic device | ||
| Driving motor | 3.75KW(5HP)/4P | ||
| Driving pressure | 70kg/cm2(7Mpa) | ||
| Oil capacity | 90 L | ||
| 6 | Air pressure device | ||
| Working air pressure | 4-6kg/cm2(55-85psi) | ||
| 7 | Machine size and weight | ||
| Size(LxWxH) | 7100*2200*1880 | ||
| Weight | 2800kgs | ||
| 8 | Equipment & device | ||
| Automatic lubrication system | Timing forced oil | ||
| Automatic distributor | Pneumatic reciprocating | ||
| Chip conveyor | Chain plate | ||
| Oil mist cooling device | Oil mist lubrication sprayer | ||
| Cutting fluid cooling device | 0.09kw/2p/cycle cooling | ||
| Working lamp | Quartz lamp/ waterproof and dust-proof | ||
Factory Show:
APPLICATION
Packing & Loading:
Certificates:
Exhibations:
Welcome ODM or OEM business!
| FAQ: |
| 1) Q: Can i have your quotation? A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine 2) Q: Do you have overseas service? A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client 3)Q: What is the voltage and Hertz in your country? A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment. 4) Q: How about the payment term A: T/T 30% deposit, 70% of balance paid at the sight of bl copy send by email. |
