Automatic Wide-Range Kinematic Viscosity Tester

Product Details

Product Description

Product Description

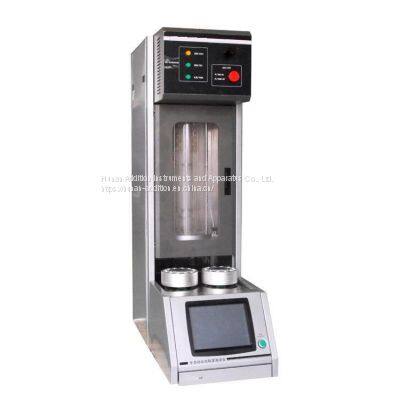

Automatic Wide-Range Kinematic Viscosity Tester
Product model: JF265Z2 (Wide-range automatic)
Product introduction
A fully automatic instrument that does not require personnel to follow the operation, because it is easy to use, the operator does not need to receive special training, when the sample is injected into the sample tank, after the operator enters the sample number through the computer keyboard, the measurement starts, no operation is required With further intervention of personnel, the instrument will automatically measure the viscosity and print it in the form of an experimental report. If required, the viscosity index (VI) and viscosity at different measurement temperatures can be calculated by software. As the liquid passes through the two miniature detectors, an electronic timer measures the flow rate to the nearest 0.01 second. The accuracy of viscosity measurement meets and exceeds the requirements specified by the ASTM D445 standard.
Technical Parameters
1. Applicable standards: ASTM D445, ISO 3104
2. Measuring range: 40℃: 0.5 - 5000cSt(mm2/s)
100℃: 1 - 2000cSt(mm2/s)
3. Timing accuracy: up to 0.01S
4. Detection method: Photocell detection
5. Temperature range: 20℃～150℃ (full range can be adjusted freely)
6. Temperature control accuracy: ±0.1℃
7. Working unit: 2*12 units
8. Working power supply: 220,240V 50,60HZ
9. Power of the whole machine: 2000W
10. Instrument size: 400*900*1300mm
11. Net weight: 120KG
Features
1. The new fast viscosity measuring tube can measure up to 80 samples per hour
2. Fully automatic sample injection, constant temperature, viscosity test, cleaning and drying viscometer, no need for random operation by personnel, the operator can leave the site after setting out, and the instrument can automatically complete all tasks
3. The computer controls and stores the data. Data can be transmitted over a computer network
4. The design allows the instrument to operate for 24 hours and 365 days without interruption
5. It can preheat high viscosity and waxy sample tray and waste liquid discharge system (50℃～100℃)
6. For difficult-to-clean samples, a dual-solvent cleaning system can be used
7. Automatic calculation of viscosity index and Saibot general viscosity, with computer self-diagnosis program
8. It is widely used by most oil analysis laboratories in the world
9. Reduce quality costs, truly improve test efficiency, and completely liberate labor productivity
10. Building block design, users can choose to order 1-4 constant temperature baths at will, which is convenient for future expansion
11. Each viscometer has a viscosity measurement range of 100 times, and there is no need to replace the viscometer when making samples
