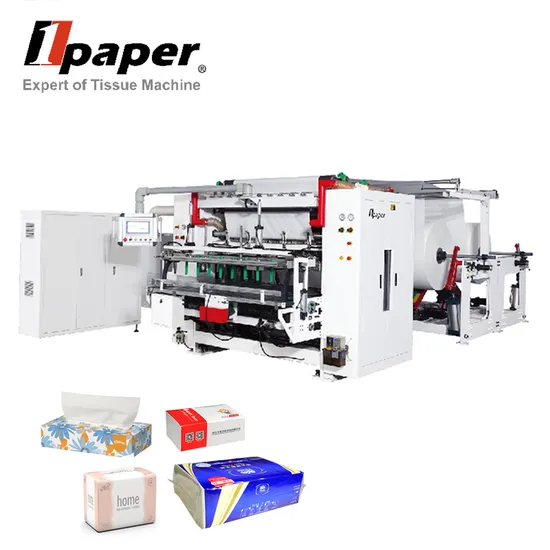

Opfd-2050 Edge Embossing V-Fold Interfolder Folding Machine for Soft Facial Tissue

Opfd-2050 Edge Embossing V-Fold Interfolder Folding Machine for Soft Facial Tissue

US$30,000.00-80,000.00 1 Unit (MOQ)

Basic Info.

Model NO.
OPFD SERIES
Certification
CE, ISO 9001:2000, ISO 9001:2008
Condition
New
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Steel Roller
Tissue Packaging
Bag
Function
Folding
Tissue Type
Pull Out
Production Speed
160m/Minute
Application
Facial Tissue,Cream Tissue,Napkin
After-Sales Sevice
Engineer Go to Install The Machine
Jumbo Roll Tissue Specifiction
2ply, 11-22GSM, 3-4ply,11-15GSM;5ply,11-13GSM
Transport Package
Wooden Crate
Specification
Main machine L8629*W3000*H2190
Trademark
ONEPAPER
Origin
China
HS Code
84418000
Production Capacity
99999

Packaging & Delivery

Package Size
8629.00cm * 3000.00cm * 2190.00cm
Package Gross Weight
5000.000kg

Product Description


Scope of Application
Suitable for automatic folding and automatic dispensing of box draw facial tissue, soft draw facial tissue and cotton soft towel.
Description of main technical parameters
1.Unwinding, crimping, embossing/gluing lamination (optional), folding, and picking (optional) are completed in one piece, making the operation simple and easy to master;
2.Adopting servo tracking unwind, effectively controlling the tension, so that the folding effect is better and the size is more accurate;
3.Adopting pressure stabilizing technology, the fan is equipped with frequency converter (or energy-saving fan), which should automatically adjust the air volume when folding speed is needed, and can save energy by 30%;
4.Fixed stopping position technology, no need to open the fan does not drop the paper when stopping (or micro-air volume suction), greatly reducing energy consumption and paper waste due to the black spot for a long time downtime;
5.Adopting new type of rear paper holder, pneumatic paper loading or motor winch lifting paper loading, which greatly reduces the labor intensity;
6.Adoption of new adsorption design effectively improves the adsorption performance and can increase the folding speed of poorly adsorbed materials;
7.Adopting half-folding and locking paper from the outside of the machine to the inside(new technology), the product is beautiful, and it is difficult for paper towels to float during high-speed transportation;
8.Adopting multi-axis servo control in-machine sub-taking design, high synchronization and coordination, more convenient for maintenance operation.
Product Description
High-Speed Automatic Facial Tissue Folding Machine
Application: Soft tissue, box tissue, cream tissue
Features: Neat from the first sheet to the last sheet; one-key change from 24 sheets to 200
sheets (300 sheets); compatible for 10.5g two-ply tissue (high difficulty) till five-ply tissue; four-side positioning embossing, one-key change of specifications (optional)
Value: The beautiful appearance of the finished product enhances its competitiveness.
The simple operation for production changing enhances production efficiency.
Multi-spot inspection ensures safe running of the equipment.
Main parameters: Production speed: maximum 150 meters/minute
Product Parameters
Tem/model OPFD Serirs
Folding type V type
jumbo roll material pulp paper
Folding specification Length depends on jumboroll width (1450/1800/2000/2800mm,optional)
Width 175/180/190/210 optional
Height 30-200sheets
Machine dimensions L8629×W3000×H2190mm
Folding speed 160m/min
Driving power 1.5KW/SET
Motor power 5.5KW
Vacuum power 30KW
Power supply type Three-phase five-wire 380V 50Hz
Machine noise ≤80dB
Air supply 0.5-0.7 MPa
Air consumption 200-260L/min
Auto transfer speed:8-15logs/min
counting sheet 30-200sheet
Machine weight ≈6000Kg
Detailed Photos
Printing Samples
Company Profile Found in 2010
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.is a national high-tech enterprise and Zhejiang Specialising in ultra new enterprise . Focus on tissue paper equipment for 15 years, the main automatic tissue paper production line, automatic cotton soft production line, etc. It has rich experience in new factory preparation consulting of tissue paper. production workshop layout design, digital factory construction, production line transformation and upgrading, etc. it has sold well as 1000 customers in Kimberly-Clark, Vinda,Hengan, Gold Hongye and other 1000 customers in 60 countries or regions, etc., and is highly recognized.
ZHEJIANGONEPAPERSMARTEQUIPMENTCO.,LTD.
Our Workshop
Exhibition
Our Parthers
Certification
FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 15+ years covering an area of 8,000 square meters,have more than 104 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries. 2. Product quality: From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.Providing solutions and services to 1,000+ customers across 50+ countries and regions, earning high recognition. Our product repurchase rate reaches 72.8%, with the highest individual customer repurchasing 27 times. Leading sales in the Arab and North African regions. 3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs. 4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment. 5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
