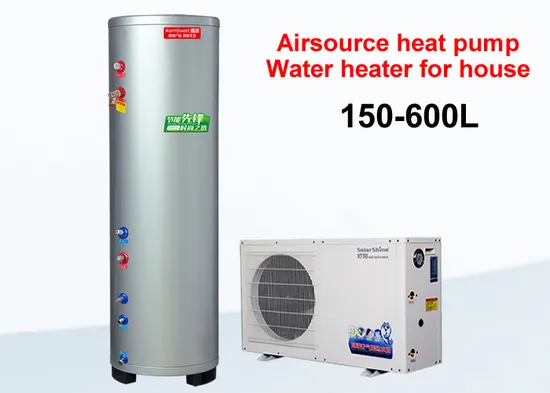

Residential Air Source Hybrid Heat Pump 1HP-2HP Air to Water Heating System

Product Description

SolarShine Air Source Heat Pump Water Heater for residential applicationsAir source heat pump water is a green energy product, which is based on Inverse Carnot Principle, it is powered by compressor with about 25% energy consumption , and obtains other 75% heat energy from the air from the process of refrigrant evaporation, so its working efficiecny can maximum reach more than 400%, saving 70% energy consumption comparing with traditional electric heater. This product is very suitable for warm climate regions such as south-east Asia, South of China, mid east, etc.
Features:
*Economical and high-efficiency: Save average 70% heating cost than electric heaters.
*Water Circulation: Easy installation and acquaintance
*Quiet Running: High-efficiency, low noise rotary compressor, low noise fan, the main unit works at extremely quiet condition.
*Intelligent: Full automatic and intelligent controller, no need any manual operation.

Specification details and price quotation
	Product type	Water circulation type air source heat pump water heater (Pressurized)
	MODEL	S-150L-1HP	S-200L-1HP	S-250L-1.5HP		S-300L-1.5HP	S-400L-2HP	S-500L-2HP
Water Tank	Water Tank Volume	150 Liters	200 Liters	250 Lit res		300 Lit res	400 Lit res	500 Lit res
	Water Tank Size(MM)	Φ470*1545	Φ520*1545	Φ560*1625		Φ560*1915	Φ700*1625	Φ700*1915
	Water Tank outer cover	Colorful shining steel(with anti-corrosive surface treatment, white / golden / Silver available)
	Water Tank inner cylinder and wall thickness	SUS304/1.0mm	SUS304/1.2mm	SUS304/1.5mm		SUS304/1.5mm	SUS304/1.5mm	SUS304/1.5mm
	Heat Exchanger	N/A
	Insulation	50mm high density polyurethane
	Rated Working Pressure	0.6Mpa
Heat Pump Main Unit	Main unit power (HP)	1Hp	1Hp	1.5Hp		1.5Hp	2Hp	2Hp
	Power consumption	1KW	1KW	1.32KW		1.32KW	1.32KW	1.67KW
	Nominal Heating capacity	3.5KW	3.5KW	4.73KW		4.73KW	4.73KW	6.5KW
	Fluid pressure reduce and adjustment device	Electronic Expansion Valve
	Ext. Dimension(mm)	756 x 260 x 450			920 x 280 x 490
	Power Supply	AC220V/50hz
	Refrigerant	R410A/R407C (new environmental refrigerant)
	20'container loading quantity	60 sets	40 sets	38 sets		32 sets	25 sets	20 sets
Remarks: 1. Above prices are based on FOB + minimum order quantity of 1x20GP full container, final price will be modified if order quantity changed more or less. 2. Since USD exchange rate changes often, final price maybe modified according to actual exchange rate of the order confirmation date.

Successful Applications
