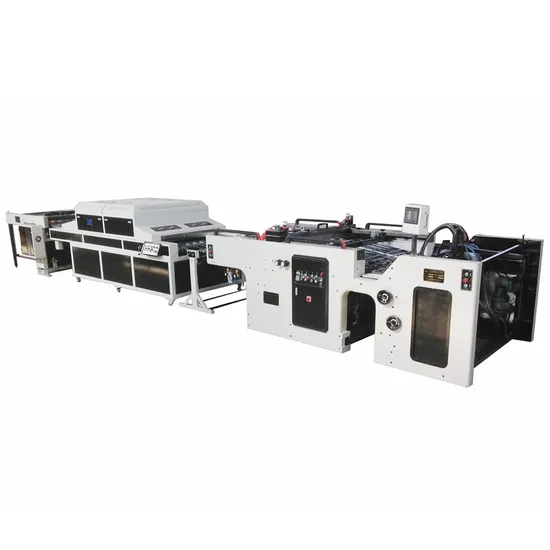

Automatic Spot UV Silk Screen Printing Machine Xf1020

Product Description

Product Description Automatic non-stop cylinder screen printing machine is the basis of our experience in the manufacture of reciprocating roller screen printing machine, the absorption of the latest technology and design at home and abroad, absorbing innovation after the launch of a currently the most advanced models. The parts are made of imported precision machine tools, and the key components are imported directly, which ensures the reliable design of their unique designs and functions. Is the packaging printing industry (paper, cardboard, stickers, PVC films), ceramic decals (ceramics, lottery, scratch silver trademark printing) and electronic industry (soft circuit board, flexible thin film switch) printing high-end product requirements of high precision and high efficiency of the ideal equipment.
Performance and Features:
1.on the both sides of the machine are equipped with pushing lays,drawing lays and photoelectric monitors to meet both sides printing requirement for the paper of different weight.The accurate registration is ensured by the pushing or drawing lays driven by the upper and lower cams,which can push and draw the printing sheets to the right positions.According to different printing sheets,the use of pushing and drawing lays can be exchanged freely.
2.The optical fiber magic eyes on the cylinder to monitor the printing sheet to be on the right position or not,which prevents the waste effectively.
3.The delivery table,actuated by the cylinder,can turn by 90°up and down quickly,which makes the cleaning of the screen plate easy.
4.The machine can be running in sheet-fed or stream-fed mode according to different printing sheets.The feeding board with vacuum suction function feeds the paper to the end stop of the cylinder smoothly,especially for those thin paper.
5.The cylinder is processed by German precision grinding machine and its diameter run-out and roundness are exactly assured.That ensures the printed sheet of good color and dot saturation.
6.Owing to the facts that the end stop of the cylinder and the flat pressure tongue before the cylinder are adopted instead of traditional hook type front lay,paper feeding by hairbrush rolls instead of traditional steel and glass rider balls and sheet smooth feeding on the feeding board with vacuum suction function,the scrubbing of the printed sheets while multiple printing is prevented.
7.The screen frame is designed to be a drawer and it can be drawn our as a whole.It is not only convenient for the cleaning,mounting and dismounting the frame,but also for the calibration and adjustment between the screen plate and the printed sheets.
8.Together with the screen frame the new designed drip tray is drawn out at the same time to prevent the remaining ink on the ink reclaiming blade and squeegee blade dropping onto the cylinder.

Stop cylinder and drawing device on the screen master frame and the screen plate fine-adjusting device are used for setting the right screen frame position for the purpose of accurate registration.
Stop cylinder screen printing machine and our series drying machine can be on-line working:
Work with UV solidifying machine(suitable for UV screen ink).
Work with flat feeding drying machine with UV&IR(suitable for solvent and UV screen ink).
Work with flat feeding hot air dryer and wicket dryer(suitable for solvent screen ink).
Detailed Photos
Product Parameters

Model	XF-780	XF-1020
Max.sheet size(mm)	780x540	1020x720
Min.sheet size(mm)	350x270	560x350
Max.printing size(mm)	780x520	1020x700
Frame size(mm)	880x880	1300x1170
Thickness (gsm)	100-400	100-400
Printing speed(p/h)	1000-3600	500-3200
Total power(kw)	8.3	11.09
Weight(kg)	3800	5500
Dimension(LxWxH)	4200x1800x1450	4550x2300x1580

Packaging & Shipping 1.Before packing, we grease the metal parts with white oil, which will make it rust-proof, water-proof and shinning.
2.The standard packing is strong wooden pallet with film covered.
3.Wooden case is available or according to the customer's request.
Pre-Sales Service:* Inquiry and consulting support.
* Sample testing support.
* View our Factory.After-Sales Service:* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.We can send 1-2 engineers to buyers factory to install and set up the machines and training, but all the charges for the engineers should be paid by buyer.
WarrantyMachines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
