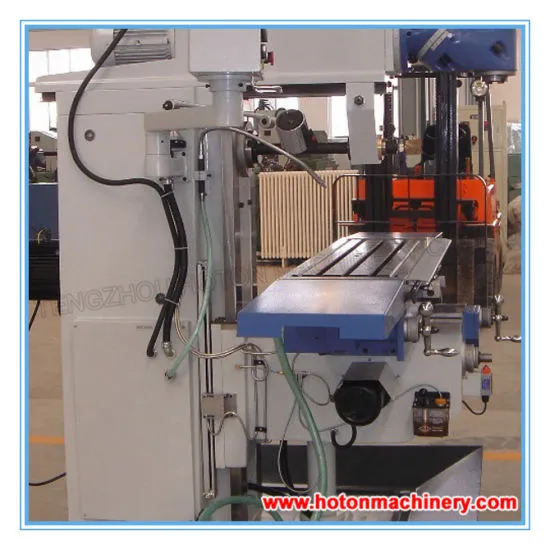

Universal Milling Machine / Swivel Head Milling machine XL6236 X6236
| US$3,300.00-3,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL6236 X6236
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
1250X360mm
Long Travel(mm)
1000mm
Cross Travel(mm)
320mm
Vertical Travel(mm)
500mm
Motor
1.1kw
Transport Package
Plywood Case
Specification
2400kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
10 PCS/Month
Product Description
UNIVERSAL MILLING MACHINE FEATURES:
sturdy, zero-backlash rectangular guideways
Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
rapid feeds on all axes allow quick positioning
control panel swivels for comfortable operation
separate drives with gearbox for powerful material removal
large machine table with one 1000 mm X travel
SPECIFICATIONS:
| SPECIFICATION | UNIT | X6236 | ||
| Spindle taper | 7:24 ISO40(V);7:24 ISO50(H) | |||
| Distance from spindle center line to column surface | mm | 350~850 | ||
| Distance from spindle nose to worktable | mm | 210~710 | ||
| Distance from spindle center line to worktable | mm | 0~500 | ||
| Distance from spindle center line to arm | mm | 175 | ||
| Spindle speed | r/min | 11steps 35~1600 (V) ; 12steps 60~1800 (H) | ||
| Worktable size | mm | 1250×360 | ||
| Worktable travel | Longitudinal | mm | 1000 | |
| Cross | mm | 320 | ||
| Vertical | mm | 500 | ||
| Worktable longitudinal/ cross power feed | mm/min | 8steps 15~370 ;Rapid:540 | ||
| Worktable elevating power feed | mm/min | 590 | ||
| T Slot | Number | mm | 3 | |
| Width | mm | 18 | ||
| Distance | mm | 80 | ||
| Main motor | Kw | 2.2 (V) 4 (H) | ||
| Worktable power feed motor | W | 750 | ||
| Worktable elevating motor | KW | 1.1 | ||
| Coolant pump | W | 90 | ||
| Coolant flow | L/min | 25 | ||
| Overall dimension (L×W×H) | mm | 2220×1790×2040 | ||
| Net weight | kg | 2400 | ||
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
