Industrial Professional End Mill &Drill Complex Re-Sharpening Machine Series

Product Description

FUNCTION/FEATURE
End mill *Applicable to (2\3\4-fute)tungsten carbide and high-speed steel end mill
*Grind rear Inclined angle,blade edge and front inclined angle.
*For different end mill grinding,no need to change grinding wheel.
*Easy to handle. Finish grinding in 1 minute.
*Mill cutting edge can be adjusted suitable for materials to be processed.
Drill
1.Can grind standard twist drill of direct shank and cone shank
2.Applicable to tungsten carbide and high-speed steel drills re-sharpening.
3.Length of drill to be ground has no limitation.

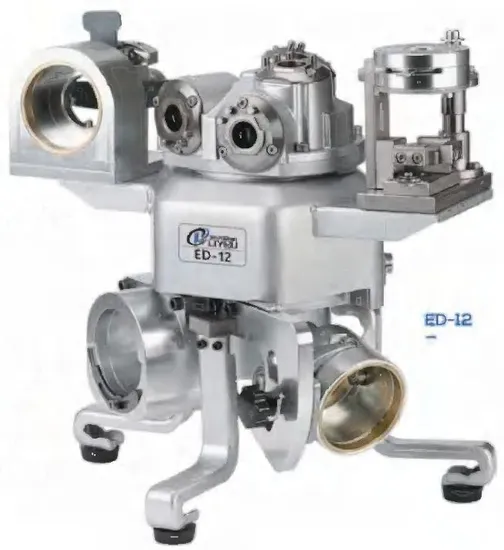

Detailed Photos
SPECIFICATION

Mode	Applicable diameters	Applicable futes	Axial angles	Grinding wheel	Power	Grinding scope of the apex angle	Rated speed	Outer dimensions	Weight/Power	Normal accessories
ED-12 ED-12H (with fine grinding)	End mill φ2-φ12mm Drill φ3~φ20mm	2flutes, 3flutes, 4flutes Twist drills	Secondary clearance angle 6° Primary relief angle 20° End gash angle 30°	E12SDC(or CBN) EDCBN(or SDO	220V±10%AC	90°~140°	6000 rpm	320x350x330(mm)	18KG/300W	Collet*7pes,2flutes holder*8pcs,3 flutes holder*8pcs,4 flutes holder*8pcs,case*1pcs,Hexagon wrench*2pcs,controller*1pcs,Chuck group*1 Group
ED-12A	End mill φ2~φ12mm Drill φ3-φ20mm	2flutes, 3flutes,4flutes Twist drills	Secondary clearance angle 8° Primary relief angle 22° End gash angle 30°	E12SpCA(or CBN EDCBN(or SDO	220V±10%AC	90°-140°	6000 rpm	320x 350x330(mm)	18KG/300W	Collet*7pcs,2flutes holder*8pcs,3 flutes holder*8pcs,4 flutes holder*8pcs,case*1pcs,Hexsgon wrench*2pcs, chunk group*1 group, controller*1pcs,Gaskets*6pcs,square flutes holder*1pcs
ED-20 ED-20H (with fine grinding)	End mill φ4-φ20mm Drill φ3~φ20mm	2flutes, 3flutes, 4flutes Twist drills	Secondary clearance angle 6° Primary relief angle 20° End gash angle 30°	E20SDC(or CBN) EDCBN(or SDO)	220V±10%AC	90°~140°	6000 rpm	370x 350x380(mm)	26KG/600W	Collet*8pcs, 2flutes holder*8pcs,3 flutes holder*8pcs,4 flutes holder*8pcs,case*1pcs, Heagon,Chunk group*1 Group,wrench*2pcs,controller*lpcs

Grinding wheel: SDC wheels used for tungsten carbide tools,CBN wheels used for high-speed steel tools.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Shipping
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
