Concrete Cement Mould Use Carbon Steel Vibrator Platform

Product Description

Product Description

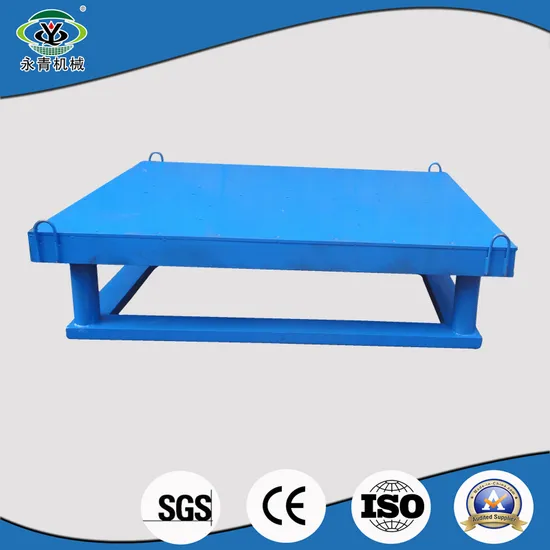

Concrete cement mould use carbon steel vibrator platform
Introduction
The concrete moulds vibration shaking table is mainly used to reduce the air and gap within the materials by vibrating, which consists of table-board, vibrating motors, springs and basement. This machine can be applied in many industries such as metallurgy, mould, food and building materials.
Principle
In the using process, the particles can arrive to the perfect status by adjusting the excitation force of vibrating motors. The vibrating table is mainly used for resin sand, lost foam, etc. The machine is vibrated by vibrating motors to make the sand to compact and enrich the mould. It can be combined with rollerconveyor to form the flow production line.
Main Feature
a. In the working process, By adjusting the vibrating force, the material can realize a ideal type.
b. The vibrating motor is vibrating source. Low noise and consumption, and be easy to maintain.
c. Simple structure. Light weight, small volume, reliable working, and be easy to install.
d. Vibration model: up to down, screw vibration and dimensional vibration.
e. Large power and platform, Max power can arrive to 7.5kw. Max loading: 8 T.
f. Height can be adjustable. So it is suitable for product line.
g. Infinitely variable speeds.
h. Auto locking function. It can make sure the manufacturing security.

Main Technical Parameters

Main Technical Specifications
Model	Table Size(m2)	Power(kw)	Amplitude(mm)	Weight(kg)
ZDP-500*500	0.25	0.25*2	2-5	150
ZDP-600*600	0.36	0.37*2	2-5	180
ZDP-800*800	0.64	0.75*2	2-5	300
ZDP-1000*1000	1.0	1.1*2	2-5	450
ZDP-1200*1200	1.44	1.5*2	2-5	1200
ZDP-1500*1500	2.25	1.1*4	2-5	1800
ZDP-2000*2000	4.0	1.5*4	2-5	2500
ZDP-3000*3000	9	1.5*6	2-5	3200

Details

Name: Horizontal Vibrating Motor Brand:Yong Qing * The vibrating motor is vibrating source. Low noise and consumption, and easy to maintain. * Three dimensional vibrating motion: a. horizontal b.vertical. c.un to down. * Motor quantity should be even number, such as 2, 4, 6, 8…

Name:Rubber Spring Brand:Yong Qing This kind of spring is sturdy and makes low noise.

Package&Certificate&Service
Packing:Outer packing is plywood case, which is up to the international standard. Inner packing is moisture-proof and water-proof membrane. All of packages are wrapped by 0.5mm steel belt to further strengthen, which can ensure machine safe during shipping.
Shipment: 5 working days after receiving your deposit.
Service:1. Special design offered. 2.Buyer label paste offered. 3.Sample testing support. 4.View our Factory 5.One year warranty. 6. Three years extended warranty.
7. 24 hours inquiry and consulting support. 8. Training how to instal and use the machine.
Main Products
Required inquiry information for a suitable model
1. The table size?
2. The height?
3. The max loading you require?
4. The voltage you use?
5. Additional parts ,like the mobil wheel, frequency converter, etc.
