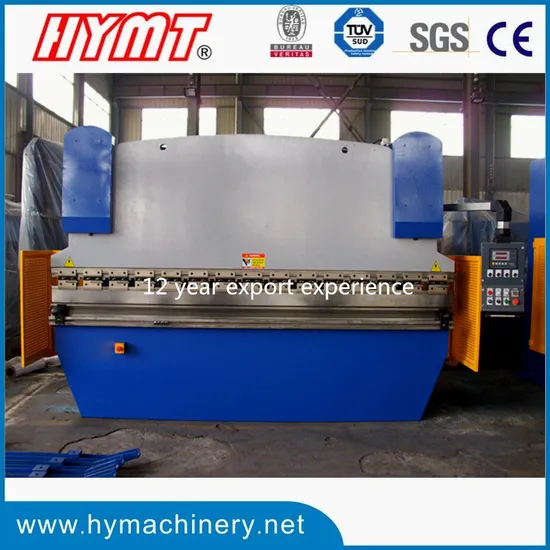

WC67Y-125X3200 Hydraulic bending& folding machine/press brake

Product Description

Standard Equipment: 1.System Intermediate Upper clamps with Anti Wedges 2.Plate Support Arms 3. Powered Depth Axis 4. Backstop 5. Light guards 6. Top and Bottom Tooling 7. Estun E21 NC control 8. OMAGE Hydraulic valve 9. Siemens or Schneider Electrics 10. Hydraulic and Electrical overload protection 11. Squaring Arm and Front Support Arms 12. It can be completed with guide liner and ball screw with 0,05 mm accuracy. 13. Side guard is standard meeting CE regulations. Estun E21 NC Press Brake Control system: 1. Monochrome LCD Box Panel. 2. Integral factor programmable freely 3. Automatic positioning control 4.Spindle allowance offset 5.Internal time relay 6.Stock counter 7.Backgauge position display, resolution in 0.01mm
Our Services 1.Standardization of Service "212" 2: response in 2 hours 1: provide solution in 1 day 2: solve complaint in 2 days 2.Installation Service Installation Services are available with all HYMT machines. We dispatch technician to customer's factory for
installation and preoperation of machines. 3.Training Service Our technician is available to your factory and offer training of how to use our machines. As well, you may send
your technician to our company to learn how to operate machines. 4.Quality Guarantee We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Main features:
1.The whole machine is in sheet plate welded structure,which internal stress eliminated by vibration aging technology,high strength and good rigidity of machine.
2.Double hydraulic oil cylinder is applied for upper transmission,provided with mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation,as well as high precision.
3.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block,and fitted with digital display device,easy and quick in use.
4.Upper die is fitted with deflection compensation device.
5.Safety guide is optional. (It has protection barrier and photo-electric protection device).
Main specifications:

Type	Nominal Force (KN)	Worktable Length(mm)	Poles Distance (mm)	Throat Depth(mm)	Slider Travel(mm)	Max Open(mm)	Power (kw)
40T/2200	400	2200	1875	230	100	320	5.5
40T/2500	400	2500	1875	230	100	320	5.5
50T/2500	500	2500	1875	230	100	320	5.5
63T/2500	630	2500	2020	250	100	320	5.5
63T/3200	630	3200	2575	250	100	320	5.5
80T/2500	800	2500	2020	300	100	320	7.5
80T/3200	800	3200	2590	320	100	350	7.5
80T/4000	800	4000	3050	320	100	350	7.5
100T/2500	1000	2500	2020	320	120	320	7.5
100T/3200	1000	3200	2600	320	120	370	7.5
100T/4000	1000	4000	3050	320	120	370	7.5
125T/3200	1250	3200	2600	320	120	370	7.5
125T/4000	1250	4000	3050	320	120	370	7.5
160T/3200	1600	3200	2600	320	200	460	11
160T/4000	1600	4000	3000	320	200	460	11
160T/5000	1600	5000	4000	320	200	460	11
160T/6000	1600	6000	4940	320	200	460	11
200T/3200	2000	3200	2600	320	200	460	11
200T/4000	2000	4000	3000	320	200	460	11
200T/5000	2000	5000	4000	320	200	460	11
200T/6000	2000	6000	5000	320	200	460	11
250T/3200	2500	3200	2500	400	250	590	18.5
250T/4000	2500	4000	3000	400	250	590	18.5
250T/5000	2500	5000	4000	400	250	590	18.5
250T/6000	2500	6000	5000	400	250	590	18.5
300T/3200	3000	3200	2530	400	250	590	22
300T/4000	3000	4000	3470	400	250	590	22
300T/5000	3000	5000	4000	400	250	590	22
300T/6000	3000	6000	5000	400	250	590	22
400T/4000	4000	4000	3000	400	250	590	30
400T/5000	4000	5000	4000	400	250	590	30
400T/6000	4000	6000	5000	400	250	590	30
500T/5000	5000	5000	4000	400	250	590	45
500T/6000	5000	6000	5000	400	320	590	45
600T/4000	6000	4000	3000	400	320	590	55
