Full automatic plastic / pet bottle blowing machine price / stretch blow molding machine
Product Description

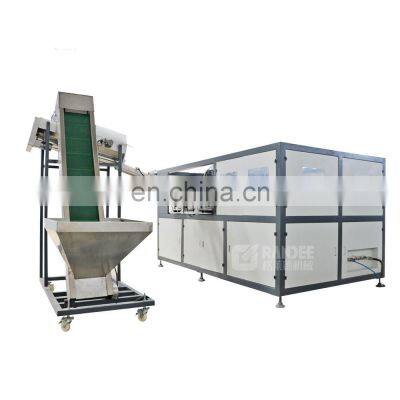

GD-A2 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Features of main body:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to install,test and start up.
14). Low rejection rate: less than 0.2 percent.
Operation:
The standard operation of GD-A2 stretch blow molding machine includes four steps as follow
Step 1. Put the preform into preform container and the conveyor will take the preform to orientation units automatically.
Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.
Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.
Step 4. The finished bottle is taken off by automatic discharging system
Main machine :
2 Cavity bottle blowing mold
Heating lamp in the heating oven
PET Prefrom from preform loader into blowing machine
Main technical parameter:

Model	GD-A2
Productivity	Depend on bottle design	2500PCS/H
Product type	Body diameter	20mm-100mm
	Height	50mm-350mm
	Neck diameter	15mm-38mm
Mold	Cavity	2cavities
	Mold thick	240mm
	Mold	500*500mm
Main machine power	Electrical source power	380v 3Phase /220v 3Phase 50/60HZ
	Power	25kw
	Really use power	6kw
Air source	LP air compressor	1.2m3/min 1.2MPa 1set (7.5KW)
	HP air compressor	1.2m3/min 3.0MPa 1set (each set 15KW)
	Air dryer	1.2m3/min 3.0MPa 1set
Cooling water	Cooling water	10L/min
Size	L*W*H	1908*1280*1920mm
	Weight	2000kg
Auxiliary equipment(preform unscrambler)	L*W*H	276*106*186mm
	Weight	250kg
Resin available		PET

Related products
Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable plastic bottle blow moulding machine or complete water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: What's the capacity of plastic bottle moulding machine?
A2: We have full automatic and semi automatic unit with 800BPH to 13000BPH for 500ml plastic bottle
Q3: How to choose the capacity of blowing machine for water production line?
A3: If you want 2000-3000BPH for 500ml water production line, you can choose semiautomatic blowing machine with 1500BPH, the cost is about 8000-10000USD, if 4000-5000BPH for 500ml, you can choose full automatic 4 or 6 cavity normal speed or high speed servo driven blowing machine, the cost is about 40000-60000USD, if you want more details, you can send me inquiry, we can give you more professional technical solutions.
Q4: Are you a trading company or a manufactory?
A4: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q4: Do you have technical support after we purchased your machines?
A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q5: If you buy our machines, can you offer us wear-out spare pats?
A5: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
