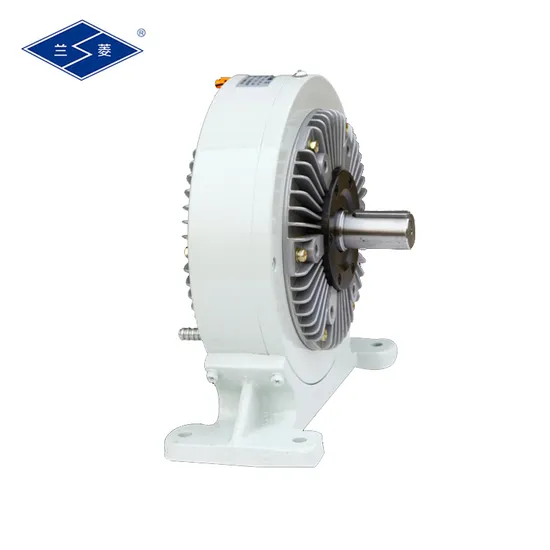

Fz100. J/Y Magnetic Powder Brake High Quality Factory Supply with Ce Qualification

Fz100. J/Y Magnetic Powder Brake High Quality Factory Supply with Ce Qualification

US$300.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FZ100. J/Y Magnetic powder brake
Rated Torque
100 N.M
Voltage
24V DC
Current
1.2 a
Allowable Rotational Speed
1500 R/Min
Slip Power
3kw
Cooling Mode
signal Water Cooling
Transport Package
Wooden Box
Specification
FZ100. J/Y
Trademark
Lanmec
Origin
China
HS Code
8505200000
Production Capacity
10000 Sets / Years

Product Description

Product Description
Magnetic powder brake:

Model Rated torque(N•m) Excitation coil Allowable rotational speed(r/min) Slip power(KW) Outline dimension Shaft coupling size Base support size Cooling mode
Voltage(V) Current
(A)		 H L d(h7) b(p7) L1 L2 L3 L4 L5 L6 H1 d1 h
FZ2.5.J 2.5 24 0.4 1500 0.03 110 88 10 3 20 9 50 68 100 120 60 7 12 Self cooling
FZ5.J 5 24 0.5 1500 0.06 138 94 12 4 25 10 50 68 120 140 75 7 12
FZ10.J 10 24 0.6 1500 0.12/0.8 166 103 14 5 25 7 60 85 120 150 90 10 12 Self/single water cooling
FZ25.J 25 24 0.8 1500 0.2/1.2 196 115 20 6 36 5 70 96 150 180 110 12 15
FZ50.J 50 24 1.0 1500 0.3/2 240 140 25 8 42 11 80 105 180 210 130 12 16
FZ100.J/Y 100 24 1.2 1500 3/5 284 249 30 8 58 11 100 130 250 290 155 12 18 Single/double water cooling
FZ200.J/Y 200 24 1.8 1000 4/8 329 260 35 10 58 10 120 165 280 330 180 15 22
FZ400.J/Y 400 24 2.5 1000 5/12 400 313 45 14 82 14 130 180 330 390 215 15 22
FZ630.J/Y 630 36 2.5 750 15 441 374 60 18 105 20 150 210 410 480 240 19 30 Double water cooling
FZ1000.J/Y 1000 36 2.5 750 20 523 417 70 20 105 35 160 210 470 540 280 19 35
FZ1500.J/Y 1500 36 3.0 750 25 556 480 75 20 105 70 160 210 470 540 300 19 40
FZ2000.J/Y 2000 36 3.0 500 30 619 486 80 22 130 56 170 240 580 660 330 24 40
FZ5000.J/Y 5000 36 3.5 400 50 824 576 90 25 140 13 320 388 600 700 430 24 50
FZ10000.J/Y 10000 36 4.0 300 65 1126 651 120 32 160 18 360 450 900 1030 600 28 88
FZ20000.J/Y 20000 48 5.0 300 90 1205 916 140 36 180 45 480 560 950 1100 650 34 100
FZ30000.J/Y 30000 90 4.0 300 132 1205 1271 160 40 200 194 690 1050 1180 650 34 120
FZ50000.J/Y 50000 90 5.0 250 160 1298 1965 180 45 250 549 690 1050 1180 700 34 120
