Pole Mounted Over Line Overhead Service Transformer Fuse Cut out

Product Description

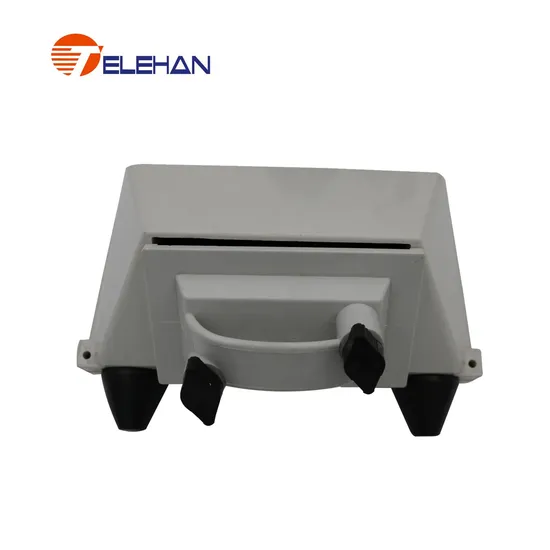

ECF POLE-MOUNTED CUTOUT FUSE

Overview and presentation: All insulated pole mounted device for the containment of an overhead single pole fuse. Requires a BS 88 J type slotted tag fuse with 82mm centers. Construction: Body and Cover: Glass reinforced polyester Phase Bus Bars: Electro tinned copper Fuse Wedge Contacts: Brass Cable Sealing Glands: Synthetic nit-rile rubber Performance: Rated Voltage: 240/415V AC Rated Current: UP to 400A Rated Frequency: 50Hz Operator Protection: IP43
All insulated pole mounted device for the containment of an overhead single pole fuse. Requires a BS 88 J
type slotted tag fuse with 82mm centres

Summarize:
1, Vandal resistant tough design, using our own formulation of GRP.
2, Slide fit front cover for ease of jointing.
3, Easy fit' studs accept cable sockets(lugs) up to 300mm².
4, Designed to accept standard 'J' type fuse links
5, Fully compliant with the requirements of BS 7656:1993
6, Fully meeting the design criteria of IP43
7, This fused Cut-out is designed to accommodate standard wedge type fuse links to BS88 PART 5:1988. Tested and approved for category of duty 415AC80.
8, Fixing centre requirement is 82mm.
9, Standard fuse link rating range from 20A to 400A.
