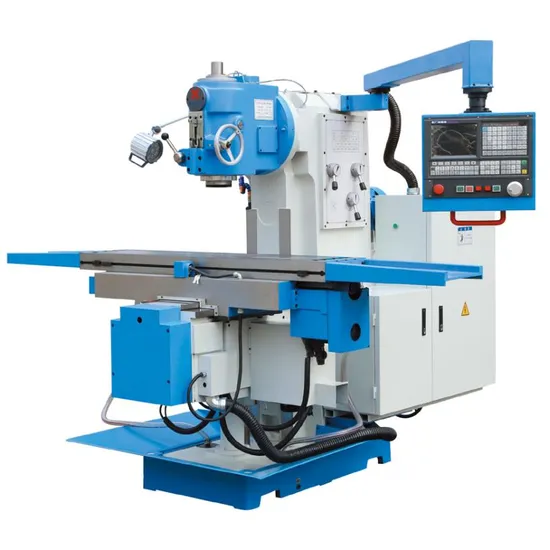

CNC Vertical Knee-Type Milling Machine
| US$5,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XLK5036 XLK5030
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product DescriptionXKL5030 and XKL5032 can be directly or through the attachment to install a variety of cylindrical milling cutter, national blade milling cutter, Angle milling cutter, forming milling cutter and end milling cutter to mill a variety of parts, can process a variety of medium and small parts of the plane, bevel, groove, hole, gear, etc., is the ideal processing equipment for machinery manufacturing, mold, instrument, instrument, automobile, motorcycle and other industries.
Standard equipment: SIEMENS808D
Optional equiment: The fourth axis CNC rotary table
CNC dividing head)
CNC system: FANUC,Mitsubishi. GSK980MDC Product Parameters
| Specification | Unit | XLK5036C | XLK5036CL | XLK5030 |
| Spindle hole taper | - | 7:24 ISO50 | 7:24 ISO40 | |
| Distance between spindle and table surface | mm | 30-480 | 35-435 | |
| Distance from spindle center line to column | mm | 378 | 285 | |
| Spindle speed range | r/min | 12 steps 50-1475 | 12 steps 35-1500 | |
| Swivel angle of vertical milling head | ±30° | ±30° | ||
| Stroke of spindle quill | mm | 70 | 70 | |
| Table size | mm | 1325x360 | 1600x360 | 1370x300 |
| Table travel (X/Y/Z) | mm | 1100/320/450 | 1300/320/450 | 820/300/400 |
| Table rapid feed speed | mm/min | 4000/4000/3000 | 4000/4000/3000 | |
| T-slot (No. / width / pitch) | mm | 3/18/70 | 3/14/80 | |
| Main motor power | kw | 5.5 | 3 | |
| Torque of X / Y / Z axis AC servo motor | N.m | 10/10/18 | 10/10/15 | |
| Overall size(LxWxH) | mm | 2245x2100x2150 | 2520x2100x2150 | 1850x1680x1880 |
| Net weight | kg | 2850 | 2900 | 1850 |
