Vhp800 Vmc850 5 Axis Simultaneous CNC Machining Center
| US$150,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VHP800, VMC850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Spindle
Bt40
Tool Magazine
16 or 24
Guide
Linear Guideway
Screw
Ball Screws
Volt
Customized
Product Name
5 Axis Machining Center
Table Size
1210
Anotner Name
5 Axis Simultaneous Machining
Max.Length of Workpiece
800
Can Be Used as
CNC Machining Center
X-Axis Travel
800
Y-Axis Travel
450
Z-Axis Travel
500
a-Axis Speed Range
0-360
B-Axis Speed Range
±90
Transport Package
Iron Pallet Plywood Case
Specification
VMC850
Trademark
ALLWAY
Origin
China
HS Code
84571010
Production Capacity
100PCS/Year
Product Description
Vhp800 Vmc850 5 axis simultaneous CNC Machining CenterAdvantage :
1. 5-axis synchronization machining;
2.high efficient and reliable.
1.Product introduction and use

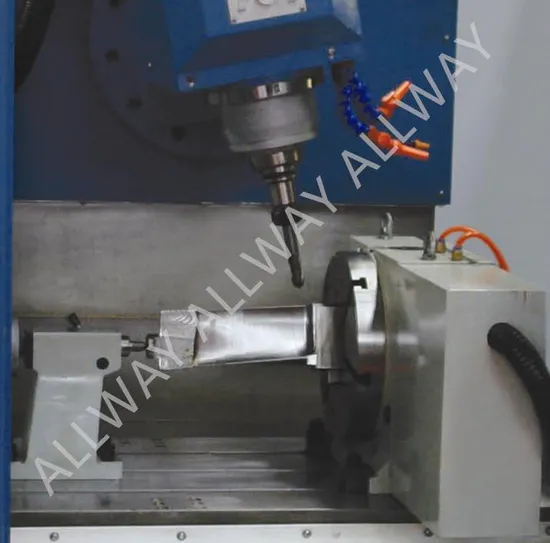

The feed axis of the VHP800-5AX 5-axis synchronization machining center is the linear coordinates of X, Y ,Z three axes, and the rotary coordinates of A and B two axes, to realize the five-axis synchronization function. The spindle is driven by the servo motor.The machine can process all kinds of vanes , vanes of steam turbines and gas turbines, all kinds of narrow and long shaped special curved parts, such as aircraft propellers and engine impellers. It is widely used in electric power, aviation, industry and other industries.
2. structure feature
5-axis synchronization machining
B-axis Speed range ±90
3.STANDARD CONFIGRATION:
1)X axis high rigid roller linear guideway;Y, Z axis adopts quenching rectangular guideway; Y axis adopt super wide 4 guideway support
2)HNC-21MD 5-AXIS simultaneous displacement CNC system
3)TK13315E Nc rotary table from Chinese famous brand.
4)High speed spindle unit(80-8000rpm).
5)Spindle center blow
6)spindle motor, servo 7.5 Kw;
7)automatic loosen and tighten tools, configuration floating pneumatic tool device
8)High pressure water cooling
9)air cooled
10)X, Y, Z, B axis servo motor torque 27 nm, A axial feed motor torque 11 nm
11)Interval auto-lubricating.
12)Separated type electronic handwheel.Standard exterior RS232 interface.
13)Three color lamp
14)Full splash guard.
4.Main technical parameters
| Specification | Unit | Parameters | ||
| Max.length of workpiece | mm | 800 | ||
| Max.diameter of workpice | mm | 420 | ||
| X-axis travel | mm | 800 | ||
| Travel | Y-axis travel | mm | 450 | |
| Z-axis travel | mm | 500 | ||
| A-axis Speed range | . | 0-360 | ||
| B-axis Speed range | . | ±90 | ||
| Spindle nose to table | mm | 210-710 | ||
| Spindle nose to the Rotary Centre of the B-axis | mm | 200 | ||
| Spindle center to column Guide-way face | mm | 620 | ||
| Feed | X-axis Feeding speed | mm/min | 15000 | |
| Y-axis Feeding speed | mm/min | 15000 | ||
| Z-axis Feeding speed | mm/min | 12000 | ||
| A-axis maximum speed | rpm | 11.1 | ||
| B-axis maximum speed | rpm | 20 | ||
| Cutting feed rate | mm/min | 1-5000 | ||
| Workbench | Size of the table | mm | 570×1210 | |
| Max.loading weight of the table | kg | 750 | ||
| The high from worktable to ground | mm | 850 | ||
| T-slot NO./width/distance of the table | mm | 3/18/150 | ||
| Swiveling head (B-axis) | swiveling head (B-axis) maximum turning torque | Nm | 1500 | |
| swiveling head (B-axis) reduction ratio | 1:71 | |||
| swiveling head (B-axis) top speed | rpm | 20 | ||
| swiveling head (B-axis) Slewing range | -90°~90° | |||
| Spindle | max.speed | rpm | 80-8000 | |
| diameter | mm | 70 | ||
| nose taper | BT40 | |||
| Others | N.W | kg | 9500 | |
| Overall dimension | mm | 2600×3200×2600 | ||
5.OPTIONAL CONFIGURATION:
1)FAUNC 0i MF1, Mitsubishi, Siemens,GSK,and others
2) air gun for clean
3) coolant through spindle of Taiwan;
4) Chain type auto chip removal device ;
5)setting tool device.
ALLWAY MACHINERY:
Always create value for customers. Develop together with customers!
