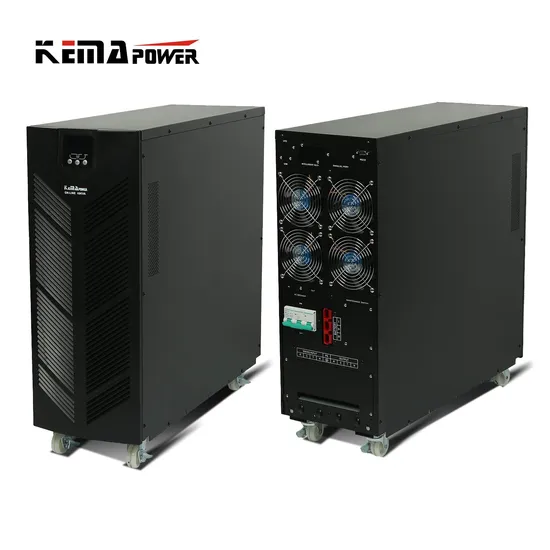

High Frequency Online UPS 10kVA 20kVA 30kVA 40kVA Pure Sine Wave Uninterruptible Power Supply Online UPS
| US$542.00-1,206.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
33XG10-40KVA
Protection
Overvoltage
Application
Industry
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
Kemapower
Display
LCD
Transfer Time
0 Ms
Dimension(L*W*H) mm
533X260X501 or 717X260X710
Weight (Kg)
26/ 50/ 58.5/ 60/ 83.5/ 98
Transport Package
Safety Packing
Specification
10-40KVA
Trademark
KEMAPOWER
Origin
China
HS Code
85044020
Production Capacity
600, 000PCS/Year
Packaging & Delivery
Package Size
495.00cm * 470.00cm * 345.00cm
Package Gross Weight
15.000kg
Product Description
High Frequency Three Phase Online UPS33XG10-40KVA
KEY FEATURESLCD High Frequency Double Conversion Sine Wave Online UPS 10-40KVADSP digital control technology, Zero transfer time Three phase sine wave, output Power Factor 0.9 Wide input voltage range 274-478VWide input Frequency 40-60Hz(50Hz)/50-70Hz(60Hz) , support Generator, output HZ be fixed or follow mainsAdvanced Input PFC technology, 0.99Full protection, overload, over voltage, short circuit, over temperature etc.Adaptive Load Management Generator compatibleRS232 communication with monitoring software, optionalEPO, SNMP optional, PRC10-40K Option TECHNICAL SPECIFICATIONS
| Model | 33XG10KS | 33XG10K | 33XG20KS | 33XG20K | 33XG30KS | 33XG40KS | |
| Capacity | 10KVA/9KW | 20KVA/18KW | 30KVA/27KW | 40KVA/36KW | |||
| Input | Voltage | 3PH+N+G, 380V | |||||
| Voltage Range | (274-478) VAC (Full load) | ||||||
| Breaker | 32A | 50A | 60A | 80A | |||
| Frequency | 40~60Hz (50Hz ) /50~70Hz (60Hz) | ||||||
| Factor | > 0.99 | ||||||
| Output | Voltage | Ph to N, 220V200/208/220/230/240VAC (1±1%),adjusted by software. 10% derating for 208VAC/200VAC. | |||||
| Current | 15A | 30A | 45A | 61A | |||
| Factor | 0.9 | ||||||
| Frequency | Line Mode (1) synchronized 46~ 54Hz; | ||||||
| Line Mode (2) 50Hz (line 40~ 46 or 54~ 60Hz); | |||||||
| Bat mode: 50Hz. ( 60HZ for Choice ) | |||||||
| Distortion | THD < 3% (R full load) | ||||||
| Overload Capacity | 105% - 125% transfers to bypass mode after 1 minutes; 125% ± 5%< load ≤ 150% ± 5% transfers to bypass mode after 30 second | ||||||
| Current Crest Ratio | 3:1 | ||||||
| Efficiency | Line: ≥ 93%, Bat: ≥ 90% | ||||||
| Communication | RS232 with softwave and Canble. SNMP Optoion | ||||||
| Rated Bat No. | 192(240)VDC | 16(20)*7Ah | 192(240)VDC | 16(20)*7Ah | ±192(240)VDC | ||
| Charge Current | 5A | 1A | 7.5A | 1A | 10A | 10A | |
| ECO/EPO | Optional | ||||||
| Short Circuit Protection | YES | ||||||
| Working Temperature | 0ºC~40ºC | ||||||
| Altitude | <1000m | ||||||
| Audible Noise | ≤60dB | ||||||
| Storage Temperature | -15ºC~45ºC | ||||||
| Work Humidity | 20%~95% | ||||||
| Noise (dB) | ≤ 60dB | ||||||
| Dimension(L*W*H) mm | 533x260x501 | 717x260x710 | |||||
| Weight (kg) | 26 | 83.5 | 50 | 98 | 58.5 | 60 | |
PRODUCT DISPLAY10-40KVA BACK VIEW
1. EPO Emergency shutdown switch
2. SNMP card
3. Parallel board install position
4. RS232 communication interface
5. FAN
6. RJ45
7. Input breaker
8. Battery connect position
9. Wiring installation
10. Terminal block
11. Wheel
10-40K Display Panel
