Automobile Turbocharger Test Bench with Air Heating System

Product Description

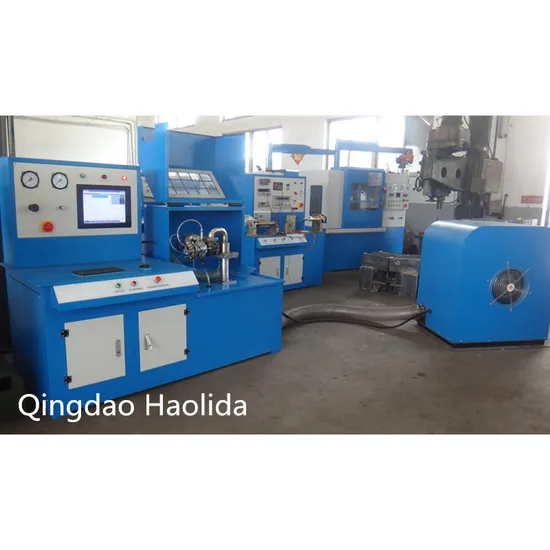

HLD-QZY-2R model turbocharger test bench

General introduction:
This turbocharger test bench is applicable for testing performance of turbocharger on various models truck engines and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values

Advantages:

It is with indicator lamp following each step and warn you the problems. It possesses high control sensitivity and strong controllability. It is easy to learn and operate. It has a protective cover to avoid danger during test It can test various kinds of turbochargers as long as they are with the same working principle It is matched with PLC computer to operate, display, save & print test results and curves. It adopts electrical heating to make high temperature test of the turbocharger, simulating the running state on the cars, the speed can reach hundred thousands r/min. It uses high precision sensor,simulating the working state of the turbocharger on the vehicle
Test items:

Test speed of turbocharger Test air flow of turbocharger Test boost pressure of turbocharger Test lubrication state of turbocharger Test turbine inlet temperature of the turbocharger Test turbine outlet temperature of the turbocharger Test the temperature of the lubrication oil Test the inlet pressure of the turbocharger
Technical parameter:

Model no	HLD-QZY-2R
Language	English
Material	Metal plate
Painting	Powder painting, durable and beautiful
Color	Blue
Voltage	380V 50 Hz 3P
Power of air generator	11KW
Frequency converter power	15KW
Input air source	1.0Mpa
Motor power of the oil pump	370W
Rated pressure of the oil pump	0-2.0Mpa(adjustable)
Maximum displacement of oil pump	6L/min
Speed of the turbocharger	0-100000r/min
Power of the heater	57KW 0-500ºC adjsutable
Accessories:
Accessory wires, clamps, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery (negotiable)
Delivery time	35 days after receiving downpayment
HS code	90312000.90
Packing	Export plywood case

Why Choose us:

32 years' design,development and produce experience Professional R&D team Strict QC A good pre-sale and after-sale service Can design and make according to customer's requests
