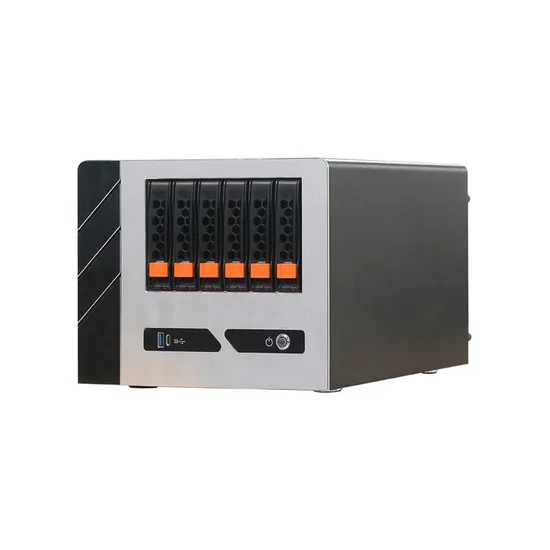

Nas 6-Drive Storage Server Full-Height Pcie Bay Hot-Swappable Chassis
Basic Info.
Model NO.
NAS-H600
Case Structure
ITX
Type
Desktop
Material
Steel plate
Color
Black
Front Interface
USB3.0
Cable Management
Not Support Cable Management
Maximum Lenght of Graphics Card
<200mm
Sheet Thickness
1mm
Power Support Type
Flex
Number of Fan
1
New
Yes
Heat Dissipation Method
Air Cooling
Manufacturer
Fanlong
Transport Package
Cardboard Box
Specification
280.4mm*295mm*225mm
Trademark
FANLONG
Origin
China
Production Capacity
2000pieces/Year
Packaging & Delivery
Package Size
37.00cm * 35.60cm * 32.60cm
Package Gross Weight
7.600kg
Product Description
Product Description Core Advantages of FanLong NAS ChassisHigh Cost-Effectiveness and Diverse Product Line
FanLong chassis cover configurations ranging from 4 to 24 drive bays, offering affordable prices (e.g., 8-bay models available for just a few hundred yuan) without long pre-order wait times, catering to users with varying budgets.
Flexible Hardware Compatibility
Supports multiple motherboard form factors (ITX, MATX, ATX) and power supply types (Flex, ATX, SFX), adapting to diverse build requirements.
Full-Height PCIe Slot Design (available in select models)
Enables expansion with 10GbE NICs, GPUs, and other hardware to enhance functional versatility.
Fanlong NAS chassis, with its high cost-effectiveness, flexible scalability, and reliable stability, has become the ideal choice for both individual users and enterprises to build private cloud storage solutions.
| Product Model | NAS-H600 |
| material | Steel plate |
| Product Size | 280.4MM*295MM*225MM |
| power supply | Supports FLEX power supplies |
| extensions | 1 pcie expansion slots, 1 com port |
| motherboards | Support ITX motherboards |
| hard drive | Internal expansion of two 2.5 hard drives |
| fan | Rear 1 x 12cm fans |
| Net/Gross | 6.4kg/7.6lg |
| Package Size | 370MM*365MM*326MM |
