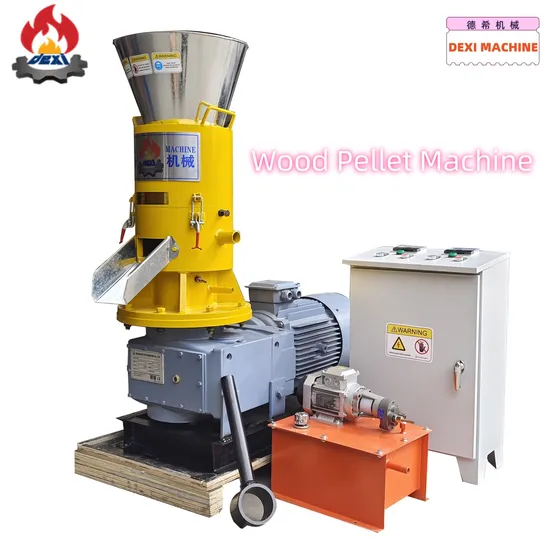

Complete Pellet Production Line Wood Chip Pellet Making Mill Wood Pellet Machine for Sale

Product Description

Product Description
Complete Pellet Production Line Wood Chip Pellet Making Mill Wood Pellet Machine for Sale
1.This equipment is good at press low adhesive and hard molding materials.

2.Such as press the rice husk, hard wood sawdust, sunflower seeds husk, peanut shell, wood bark and other wood waste, it also can press different kind of straw and agriculture waste.

3.This pellet machine is widely using in biomass pellet making industry and other pellet forming industry.With automatic lubrication system, the large shaft is injected every 15 minutes.
Functions and features

1. Simple structure, wide application range, small volume, small floor area and low noise.
2. The moisture content of pellets is very low, which is more conducive to storage.
3. The pellets produced by this machine have high hardness, smooth surface and sufficient internal maturity.

Product Parameters
Below are the parameters of the machine:

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
SKJ2-250B	15	100-200	440	1120×440×1060
SKJ2-300B	22	200-400	680	1280×560×1220
SKJ2-350B	30	300-500	850	1300×530×1220
SKJ2-400B	37	400-700	900	1620×680×1600
SKJ2-450B	55	600-800	1020	1620×690×1600
SKJ2-550B	55	700-900	1580	2000×1000×1800

Detailed Photos
Flat die wood pellet machine is the use of crops corn stalk, straw, straw, peanut shell, corn cob, cotton stalk, soybean stalk,rice husk, weeds, branches, leaves, sawdust, bark and other solid waste as raw materials, after crushing, pressure, densification,molding, become a small stick solid rest pellet fuel.
Pellet fuel is made of wood chips and straw scales by pressing roller and ring die at room temperature.
The density of raw materials is generally about 110-130kg/m3, and the particle density after molding is greater than 1100kg/m3. It is very convenient for transportation and storage, and its combustion performance is greatly improved.
Left elevation Front elevation Right elevation
Product Structure
Automatic Circulation Oil Pump Oil Inlet, Circulation One Key Start&online Monitoring
System Lubricate The Shaft Product Detail Diagram
Pressure roller for heat treatment Stainless steel mould, opening ratio 99 % Rotating nut adjusting the
Distance between roller and die Customer Interview
We have very attractive prices and looking for oversea agents ,welcome contact us for further information and you will be surprised of the significant savings that your company can achieve by working with us.
Packaging & Shipping
Packaging Detail: Iron pallet or wooden cases.
Company Profile
Shandong Dexi Machine Co., Ltd Located at Licheng, Jinan, Shandong Province China.We are professional supplier for the biomass pellet machines and complete pellet production line.
Our products involve, wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other equipment, such as animal feed pellet line, organic fertilizer pellet making line. We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Whatever pellet making machine you need from China, contact: Shandong Dexi Machine Co., Ltd. A one stop shop in the middle of China.
