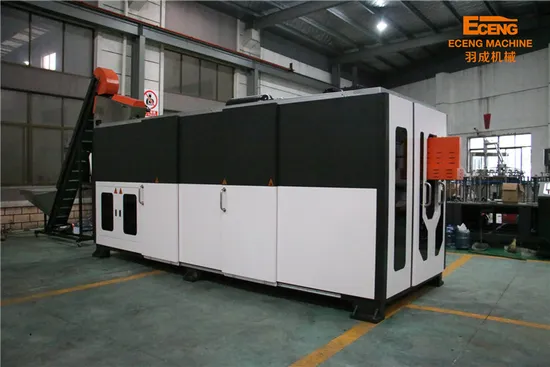

K6 Pet Bottle Making Machine Stretch Blow Moulding Machine with Low Rejection Rate

Product Description

Model: k6
Features:
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: Less than 0.3percent.
Automatic PET Bottle Blow Moulding Machine is a high speed linear blow molding machine which is developed and manufactured by our Company using the most advanced bottle blowing technology in the world. Owing to the machine's high degree of automation, high production efficiency, high safety, high stability and reliability, the products made will not be contaminated in any intermediate steps, and it can be matched up directly with the production line of filling and can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle product.
Product Parameters

Model K6
Bottle type specification	Cavity	6
	Max.volume	2L
	Bottle mouth maximum overall diameter	28-30mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Capacity specification	Theory output	9000~12000BPH
	Bottle type volume	500ML
	Bottle type weight	17g
	Bottle type	Round
Power specification	Light tube quantity	32pcs
	Light tube power	1.25KW
	Maximum heating power	40KW
	All electric machine installation	49KW
	Actual consumption	30%--60%
Air pressure specification	Work pressure	5-6kg/cm2
	Blow bottle pressure	25-45kg/cm2
	Higher -pressure gas consumption	8000Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
	Temperature range	10ºC
	Consumption	8000kcal/hr
	Forzen water flow	120L/min
Machine specification	Machine size	5.5x1.8x1.9
	Machine weight	6.1tons
