Hydraulic Surface Grinding Machine My250 Precision Manual Surface Grinder

Product Description

Hydraulic Surface Grinding Machine MY250 Precision Manual Surface Grinder

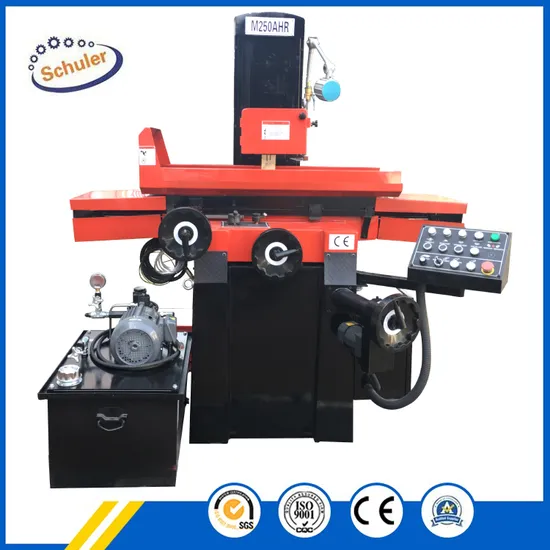

Product Picture:
Main Features:
The machine can grind various planes and complex molding surfaces. It is suitable for grinding without motorized feed. The spindle adopts P4 precision rolling bearing and labyrinth seal. It has good waterproof and dustproof performance, stable movement and high precision. The ball steel guide rail is used longitudinally, the operation is light and flexible, and the column adopts a large-span guide rail, which has good rigidity and high stability. The whole machine is manually lubricated by a manual oil pump.
Technical Parameters:

Model			Unit	MY250
Bench	Max table surfacing size (L×W×H)		m	540×250
	Max stroke (L × W)		m	560×260
	Table maximum cutting area (L × W)		m	540×250
	Number of T -Slot		mm	1×14
The grinding head	Distance From Table Surface To Spindle Center		mm	450
	Wheel Size(dia×width×bore) (WA46K5V)		mm	ø200×20×ø31.75
	Spindle speeds (50HZ)		r/m	2850
The amount of feed	Table longitudinal running speed (stepless)		m/min	3--20
	Table horizontal (before and after) the amount of feed	Continuous (variable speed)	mm/min	150
		Intermittent (stepless)	mm/	0-5
		The handwheel rotates	mm	4
		Hand wheel each grid	mm	0.02
	Vertical (up and down) feed wheel feed	The handwheel rotates	mm	2
		Hand wheel each grid	mm	0.01
Motor power	Spindle motor		kw	1.5
	Cooling motor		w	40
Hydraulic system	Hydraulic motor		kw	1.5
	Working Pressure		Mpa	3
	Oil tark capacity		L	80
	Max. Capacity		L/min	18
Working precision	The machined surface of the base of parallelism		mm	300/0.004
	Surface Roughness		μm	Ra0.32
Weight of machine	Net		T	1.25
	Cross		T	1.35
Machine Size (L×W×H)			mm	1780×1220×1780

Product Details:
Grinding Machine Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
