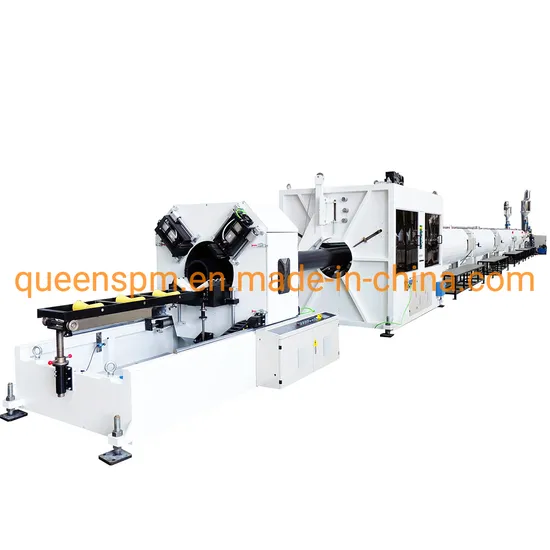

PE HDPE Pipe Production Machine Line

Product Description

PRODUCT DESCRIPTION
HDPE pipe prodution line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1600mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. It also excels in the production of anti-flammable and anti-static electricity pipes using a two or three layer spiral mould for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.

TECHNICAL PARAMETERS (33D)
Model	Pipe diameter	Extruder	Max. output	Haul-off speed	Motor power
PE63	16-63mm	SJ65/33	220kg/h	12m/min	55kW
PE110	20-110mm	SJ65/33	220kg/h	12m/min	55kW
PE160	50-160mm	SJ75/33	300kg/h	10m/min	90kW
PE250	90-250mm	SJ75/33	400kg/h	8m/min	110kW
PE450	160-450mm	SJ90/33	500kg/h	5m/min	160kW
PE630	315-630mm	SJ120/33	850kg/h	3.3m/min	280kW
PE800	500-800mm	SJ120/33	1000kg/h	1.8m/min	315kW
PE1200	710-1200mm	SJ150/33	1300kg/h	0.8m/min	355kW
TECHNICAL PARAMETERS (38D)
Model	Pipe diameter	Extruder	Max. output	Haul-off speed	Motor power
PE63	16-63mm	SJ60/38	320kg/h	30m/min	70kW
PE110	20-110mm	SJ60/38	380kg/h	20m/min	90kW
PE160	40-160mm	SJ60/38	460kg/h	15m/min	110kW
PE250	50-250mm	SJ75/38	600kg/h	12m/min	160kW
PE450	110-450mm	SJ90/38	850kg/h	8m/min	250kW
PE630	250-630mm	SJ90/38	1050kg/h	4m/min	280kW
PE800	500-800mm	SJ120/38	1300kg/h	2m/min	315kW
PE1200	710-1200mm	SJ120/38	1400kg/h	1m/min	355kW
PE1600	1000-1600mm	SJ90/38&SJ90/38	1600kg/h	0.6m/min	2*280kW

MACHINE LIST
Optional equipment: gravimetric control system, ultrasonic wall thickness measuring system, laser printing machine. Main Features: 1. We provides extremely high-performance extrusion technology for the plastics production. 2. Cost-effective energy and Material saving. 3. HDPE pipe extrusion line can produce product range : 20mm-1600mm. 4. We offer the total solution from automatic-feeding system, co-extrusion to winding or stacking even customized project.
Your benefits at a glace:
1. High output and performace
2. Optimal energy consumption
3. High grade pf automation
4. Extended production ragne
5. Excellent cost-performance ration
6. Pipe air cooling system to short the cooling and to improve the pipe quality
DETAILED IMAGES

	SIEMENS PLC & TOUCH SCREEN Feature: Intelligent & centralized control Automatic preheating Remote monitoring Intelligent alarm system Optional: B & R Control System
	MAIN MOTOR (AC) Feature: Extruder adopts high standard "SIEMENS" AC frequency or Servo motor with high performance direct connection reducer, with speed measure feedback, provides stable screw rotation output
	EXTRUSION MOULD Feature: Extrusion head with spiral structure, make sure the melt in side distributed evenly so as to achieve best plasticization. Calibrator design with water ring which is easy to clean, to achieve better cooling and then fast forming.
	GEAR BOX Feature: Mainly we use the best brand in China-CHENGBRAND. While if the client has special requirement, we can also use ZAMBELLO, REXNORD, FLENDER and some brands from Tainwan.
	VACUUM CALIBRATION TANK Feature: Advanced pipe line layout design and adjustable spray angle for better cooling effect, dense pipe line in the first zone for fast cooling. It is equipped with flowmeter, pressure protection system, water level control, temperature control drainage, water inflow control.
	HAUL-OFF MACHINE Feature: For the different pipe size and different speed requirement, we develop kinds of haul-off unit accordingly. Optional to choose multi-belt haul-off unit with wide speed range. Each belt is controlled by independent motor, optional servo motor guarantee speed uniformity.
	CUTTING MACHINE Feature: Cutter is synchronously controlled by servomotor to make sure precise cutting length. It is adopting universal clamp.

ABOUT QUEENS
QUEENS Machinery is a creative company, focusing on R & D of plastic extrusion and recycling system, providing turkey solutions for plastic pipe, profile and tile as well as plastic recycling system such as washing and recycling machines, and pelletizing machines.
QUEENS's products fulfill the needs of users in a very direct way due to over 10 years of knowledge and experience in plastic extrusion field, which also helps us to contribute actively to the success of customers by offering sustainable solutions that meet industry needs.
QUEENS offers a complete portfolio of support and consulting services all the time, from project engineering to after-sales service at its best, ongoing production optimization, training and advisory services, even end product development. We aim to provide the excellent quality machines with affordable price to the clients.
OUR SERVICE
Pre-Sales Service
* Detailed technician offer, factory or line layout providing.
* Technical support, market analyze and other necessary support.
* Factory and machine quality checking.
After-Sales Service
* Install the machines and train the workers for our client.
* 24 hours service line to solve the after sales problem.
* Long term and fast spare parts providing for each customer.
PACKING & DELIVERY

Packaging
Size	According to the machine size
Weight	According to the machine size
Packaging Details	The normal package is PE film wrapped around & wooden pallet. If the client has special requirement, the wooden box can be chosen too.

FAQ
Q: What is acceptable payment terms?
A: T/T or L/C at sight.
Q: What is the warranty time of the machines?
A: It will be 12 months since acceptance of the machines or 15 months since delivery to loading port.
Q: What about your after sales service?
A: Engineers available to make installation, commission, training, and providing after-sales service overseas.
