Automatic Steel Profile Door Framing Door Frame Roll Forming Machine

Product Description

Product Description
metal door frame roll forming machine
Botou Huayang Roll Forming Machine Co.,Ltd. Established in 2003. specialized in producing cold roll forming machine, such as all kinds of C/Z purlin roll forming machine, corrugated roll forming machine, IBR sheets roll forming machine, glazed tile roll forming machine, double layer roll forming machine, three layer roll forming machine, sandwich panel roll forming machine line, stud/ track/truss/furring frame roll forming machine, rolling shutter machine, door frame machine, high frequency tube welded forming machine, gutter machine, downpipe machine, floor deck machine and etc. Sticking to the principle of "Quality is our culture", sincerely hope to cooperate with you, my dear friend!

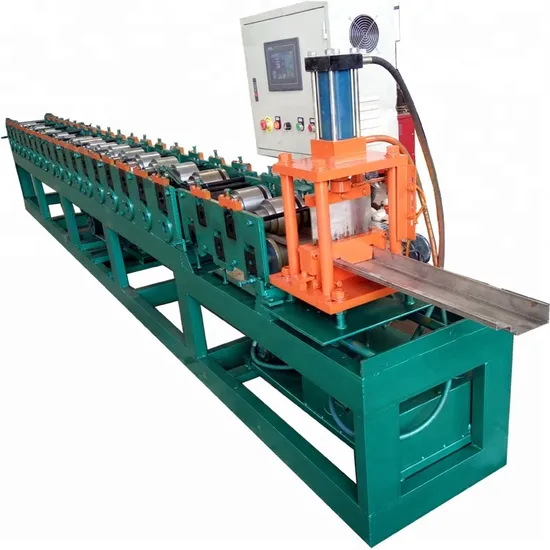

Main pictures of metal door frame roll forming machine


Product Parameters
Main parameters of metal door frame roll forming machine

Control System	NC-PLC Colored Touch Screen
Main Power	5.5 kw
Pump Power	4 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	8-10m/min
Roll Station	18stands
Shaft Diameter	52mm
Feeding Thickness	0.8-1.2mm
Side Panel Thickness	18mm
Cutter Standard	Cr12
Roller Standard	45# Steel plating Chrome with heat treatment
Cr-Plating Size	0.05mm
Overall Size	7500×1000×1200mm
Total Weight	3.5T

Detailed parts of metal door frame roll forming machine
Related Products

FAQ
customer from all over the world
1.how to play order? Inquiry-confirm the profile drawings and price-confirm the PI-arrange the deposit or L/C-then OK
2.how to visit our company? Fly to Being airport, by high speed train from Beijing Nan to Cangzhou Xi(1 hour), then we can pick you up. Gly to Shanghai airport by high speed train from Shanghai Hongqiao to Cangzhou Xi.(4.5 hours), then we can pick you up. If any questions, you can call me mob no.
3.if you want to get more pictures or videos of the machines, I can send them to you by email or skype.
4.Do you have after sales support? We take reaponsilility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer, we will provide 1 technical engineer to guide installation and training.
5.How does your factory do regarding quality control? The quality is the most important, we firmly believe that the high quality products and sevices can make a company go further. Every product will be fully assembled and carefully tested before it's packed for shipment.
6.Do you sell only standard machines? No, we can design the machines according to clients' specific profile drawing and specifications, using top brand comppnents.
