Tungsten Carbide Powder Hvof Spray Equipment Thermal Spray Machine Bp-8000 Wc Powder Coating Plasma Spray Machine

Product Description

Product Description
HVOF Flame Spraying Euqipment

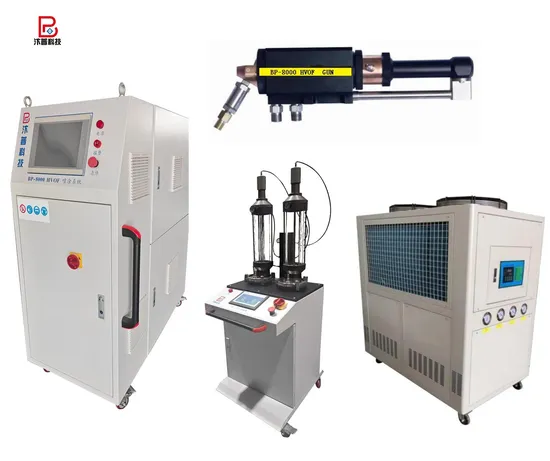

This series of Thermal Spraying equipment is designed for thermal spraying Metal powder like Tungstan Carbide or Ni-Cr coating to surface treatment process. It can apply for small parts, large workpiece coating or spraying, Mechanical Spraying, project construction spraying or coating the Metal, Carbide, Nitride powders. The HVOF spraying Line consists of Spraying Gun, Control Cabinet, Powder feeder, and Water Chiller and also required joint pipes.
Detailed Photos

Product Parameters
HVOF Spraying Parameter BP-8000

HVOF spray equipment	BP-8000 Kerosene HVOF
coating material	WC, Ni-Cr chrome carbide etc.
Fuel	oxygen & kerosene
powder feeding gas	Nitrogen or Argon
airflow parameter	pressure	flow
fuel	1.2Mpa	15-24L/min
oxygen	1.6Mpa	800-1500L/min
powder feeding gas	1.2Mpa	18L/min
powder feeding velocity	180g/min
Powder coating size	10-45μm
Coating Strength	>80MPa
Spraying speed	3000ºC
PLC control	Siemens brand
Compressor	Dual drive, American Copeland

Company Profile
SHANGHAI BIANPU TECHNOLOGY CO.,LTD
We are specialized in production of all kinds of spraying equipment and the technology application for surface coating treatment for over 15 years in China. We provide professional coating technology services and automatic production of turnkey project, such as spraying equipment, spraying soundproof room, spraying auxiliary equipment, manipulators, dust collection and pretreatment sandblasting system. Our Company has a group of experienced and professional technicians in coating processing and construction of turnkey projects.
Main Equipment:
Thermal Spraying Equipment( Plasma spraying, HVOF spraying, Arc Spraying), Auxiliary Equipment( Spraying soundproof room, Dust collection system, Rotary table, Six-axis manipulator, Sandblasting system), Automatic production of turnkey project.
Coating Processing Service:
Wear-resistant, High temperature resistance, Anti-corrosion, Insulation, Magnetic inductive, Self-lubricating wear sealing, anti-stick and wear-resistant, repair coating.
