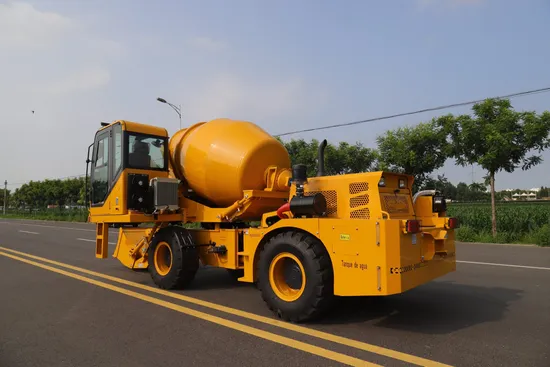

Cost-Effective 2 Cubic Meters Self-Loading Concrete Mixer Truck

Product Description

HIGH -RICH 2cbm concrete mixer truck
Loader + Mixing truck + Transport truck = 1 Self loading Concrete Mixer Truck
1.Concrete mixer truck with automatic feed and water supply. The latest technology saves time and effort.
2.The mixer truck with full hydraulic torque converter.
3.Steel wire tyre,Vibrator and camera(Real-time attention Vision blind area).
4.Manganese steel material, quality assurance.
5.Synchronized rotating cab gives the operator a wider driving vision and reduces labor costs. Only two people are required to operate.
6.High-definition driving images in the cab.
7.Low speed driving speed is 10-15km/h, high speed driving speed is 30-40km/h.
8.Free accessories box provided.
The daily concrete output of automated production can reach 200 cubic meters
1:Brake Use a small servo pump on an independent dual circuit to activate, and use a single wheel with 4 pistons to enlarge the double brake calipers. 2:Joystick Two hydraulic pilot levers control the bucket, boom, 270° rotation, and tank lifting. 3:Thickened steel frame Thickened body, sturdy and durable. 4:4*4 vacuum high-pressure tires Pressure resistance is 5 times that of ordinary tires, high safety, extended service life. Product Description

Overall Parameter
Model	HR3200L
Dimension (L×W×H)	5900*2350*3900mm
Weight	7500 kg
Performance
Mixing Drum Capacity	Drum Capacity 3200L,Concrete Output: 2.0m³ Per Batch
Production Speed	Production speed: 7tanks/h
Traveling Speed	Low Speed: 0-25km/hour
Drum Rotation	Horizontal rotation 270°
Transmission Type	4*4
Water Tank Capacity	1500L
Diesel Tank Capacity	200L
Hydraulic Oil Tank Capacity	200L
Gearbox	280intergral
Drive axle	2.0Twheel side deceleration Bridge
Tires	16/70-R 22.5
Bucket capacity(m3)	0.5
Mixing capacity(m3)	≥1.8
Reduction ratio	1:28
Rotating speed(laps/minute)	≥ 15 laps/minute
Reducer	Made in China
Gradeabiliy	30°
Engine
Model	Yuchai 4102supercharged
Manufacturer	Yuchai
Rated Power	78kw
Emission standards	Euro II
