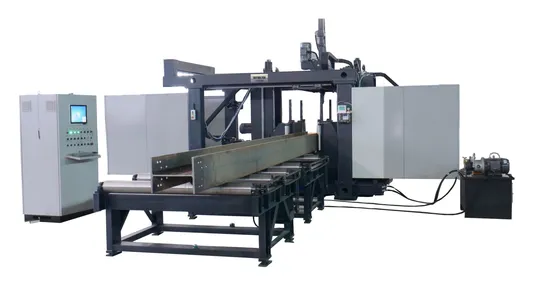

CNC H Beam Drilling Machine for Steel Structure

Product Description

Product introduction

Name			Unit	Value	Remark
H-beam Size	H-beam		mm	150x75~1250x600
	Thickness		mm	≤80
	Length		m	15m	Can be changed according to customer's requirement
	Limitation to the min. H-beam		mm	Automatic Processing ≥3000
				Manual Processing:690 ~ 3000
Spindle	Quantity		Pc.	3
	Drilling Range	Left and right drilling unit	mm	¢12~¢26.5
		Vertical drilling unit	mm	¢12~¢33.5
	Spindle Rotation Speed		r/min	180~560
	Quick change chuck		/	Morse Taper 3#,,4#	Changeable 2#
	Feeding stroke	Left and right drilling unit	mm	140
		Vertical drilling unit	mm	240
	Feeding Speed		mm/min	20~300
	Moving distance	All spindles along the length of the workpiece	mm	520
		Left and right spindle along the up an down direction	mm	35 ~ 570	from the under side of the workpiece
		Vertical spindle on the width of the workpiece	mm	45 ~ 1160	from the benchmark side
Cooling way	compressed air + atomized drilling fluid		/	/
	Air Pressure		MPa	≥0.5
Processing precision	allowance of neighbor holes distance in one hole group		mm	≤±0.5
	In length of 10m, allowance of any holes distance		mm	≤±1
Motor Power	Three phase asynchronous motor for the running of spindle		kW	4x3	Quantity of spindle: 3
	X axis servo motor for the vertical unit		kW	0.85
	Z axis servo motor for the vertical unit		kW	1.3
	X axis servo motor of left and right side		kW	0.85x2
	Y axis servo motor of left and right side		kW	1.3x2
	Infeed motor		kW	2.2
	Three phase asynchronous motor for moving saddle		kW	0.55
Overall dimension	Length×width×height		mm	About 4700×2400×3300
Total weight			kg	About 8500

Working temperature: 0ºC ~ 40ºC
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz
Total volume :35 KVA
Oil pump motor:2.2 kW
Oil pump pressure regulating 3.5~4MP
