Basic Info.
Application
Hardwood&Laminated Wood
Transport Package
Carton Box
Production Capacity
1000000 Pieces/Year

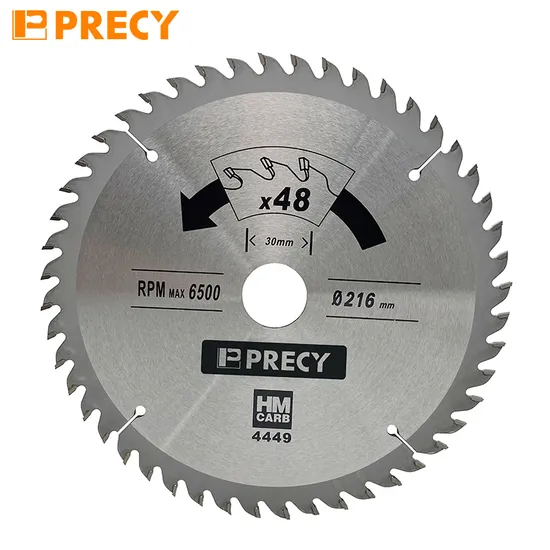

Product Description
Perfectly adapted for precise and careful sawing requiring a perfect, cheep-free cutting surface. Properties and Benefits: 1.Alternate bevel teeth (ATB): bevelled teeth on the upper side, alternatively on the right and on the left.
2.Ideal for longitudinal and transverse cuts. Suitable for universal use in hard and soft woods, chipboard …
3.Anti-kickback heel: the presence of an anti-kickback heel is vital. They are located at the back of the teeth.
4.Limits the quantity of material removed by each tooth of the blade. Thus prevents excessive cutting effort and eliminates wood emissions.
5.ATB toothing with a positive angle of attack.Teeth angled towards the front.
6.Enables more aggressive work.
7.Expansion slots: these are distributed along the outer edges of the disc.
8.They allow the metal to expand when it heats as a result of friction, thus avoiding the deformation of the blade.
Size:
Ø1 Blade Diameter(MM) | Ø2 Bore(MM) | MAX RPM |
130 | 20 | 7500 |
140 | 20 | 7500 |
150 | 20 | 7500 |
160 | 20 | 7000 |
160 | 30 | 7000 |
170 | 20 | 7000 |
180 | 20 | 7000 |
180 | 30 | 7000 |
184 | 20 | 7000 |
184 | 30 | 7000 |
190 | 20 | 7000 |
190 | 30 | 7000 |
210 | 30 | 6500 |
216 | 30 | 6500 |
230 | 30 | 6500 |
235 | 30 | 6500 |
250 | 30 | 5500 |
255 | 30 | 5500 |
Features:
Application:
Widely Uesd:
