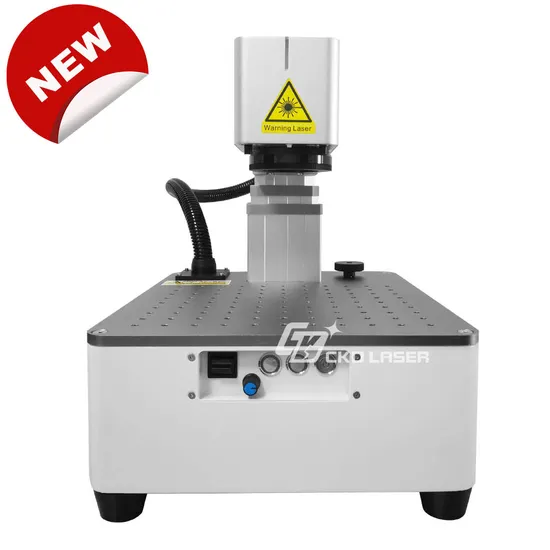

22kg E-Focus Name Plate Engraver Machine Without Noise No Limit Large Scope Marking

Product Description

CKD-PLMN V20.02 updated the weight andfocus way from old versions, it's 22Kg net weight, 300W of whole machine whenrunning full energy, using one key to control both up and down focusing, mucheasy for new users and is practically portable.
* Free install, the user can use itdirectly when receiving the machine.
* Easy focus by one key, precise and speed adjustable.
* Multi material processing, including gold,silver, copper, iron, stainless steel, aluminum, alloy, plastic, stone, darkleather and paper, painted surfaces, etc.
* Small body with big laser scan scope,35*37 base, travel distance of Z-axis column is 9-43cm, support 20W and 30Wfiber laser in this type.
Dial this switch upward, the marking head goesup, dial it downward, the marking head goes down, the next speed knob is usedfor adjusting the move speed, so that the focusing adjustment can be fast orslow down precisely.
PLMN V20.09 canbe controlled by any kind of window computer.
It's right focus when three red dots overlap.There are two dots fixed under the galvanometer, so that they are not easy tobe disturbed during and avoided off-set. The switch under the galvanometer controlthose two lights on/ off to expand service life or avoiding distraction when engravingspecial material. Easy change from outside for those lights, avoiding open thelaser to replace or maintenance.
Cooperate with topmarking software BJJCZ, orginal control baord and authorized newest EzCad2marking software. Quality assurance, powerful function, including vectors editand mark, photo marking, QR code automatially coding, series number jumping, annularsurounding edit, rotary engraving and so on.
One USB cable link the machine to computer, one step to plug on rotary for marking surrounding rings and so on, can use foot-switch to release hands to start laser when ready.
Notice please: rotary is optional part which isn;t incuded in the machine. More optional parts, please check our website: product > device, or consult online service for suggestions.
Configuration choose:

Type	CKD-PLMN-20	CKD-PLMN-30
Laser Source	Fiber Laser	Fiber Laser
Laser Power	20W	30W
Marking Scope (Optional)	100*100/150*150mm	100*100/150*150/200*200mm
Focus Way	Three Dots	Three Dots
	Motorized Up/Down	Motorized Up/Down
Control Board	Orginal BJJCZ	Orginal BJJCZ
Marking Software	Authorised Newest EzCad2	Authorised Newest EzCad2
Dimension	35*37*(41-75)cm	35*37*(41-75)cm
Net Weight	22Kg	22Kg
Total Power	300W	300W

Global shipping by express, support SF andDHL, 3-5 work days after payment.
Contact us to place order:
Please list the configuration requirements,your company information and send them to the online service dialog. Our saleswill contact you as soon as possible. Thank you.
