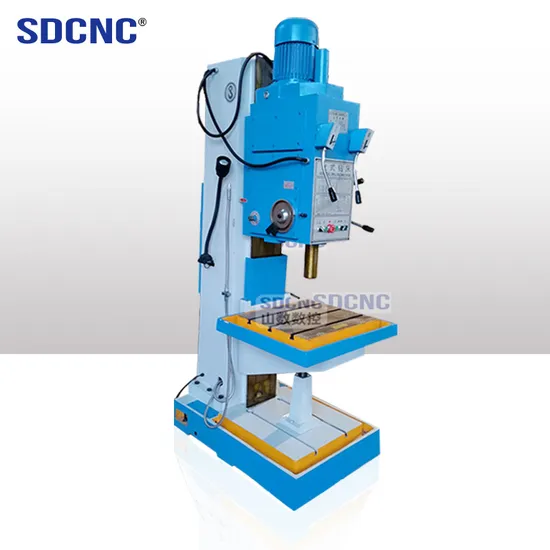

Z5132 China Square Column Vertical Drilling Machine Column Machine Drill Machine
| US$3,860.00-4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5132
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Dia
32mm
Max Feed Resistance
1200n
Distance From Spindle Axis to Column Gui
280mm
Spindle Travel
200mm
Spindle Box Travel
200mm
Transport Package
Wood Package
Specification
980*807*2302mm
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
98.00cm * 80.70cm * 230.00cm
Package Gross Weight
12500.000kg
Product Description
Steel drilling machine Z5132 Drilling machine made in china
Product description:1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very
convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed
operation, novel appearance, convenient maintenance and so on.
SPECIFICATIONS
Product main technical specifications:
| Specifications | Z5132 |
| Max drilling dia | 32mm |
| Max feed resistance | 12000N |
| Max. spindle allowable torque | 200N.m |
| Spindle taper | Morse No. 4 |
| Distance from spindle axis to column guideway | 280mm |
| Spindle travel | 200mm |
| Spindle box travel | 200mm |
| Spindle speed | 50~2000r/min (9) |
| The amount of feed(mm/rev) | 0.056-1.80mm/r (9) |
| Working table stroke | 310mm |
| Working table surface size | 400×550mm |
| Distance from spindle nose to table surface | 710mm |
| Main motor power | 2.2kw |
| Cooling pump flow | 25L/min |
| Overall dimension | 980*807*2302mm |
| N/W | 1250kg |
