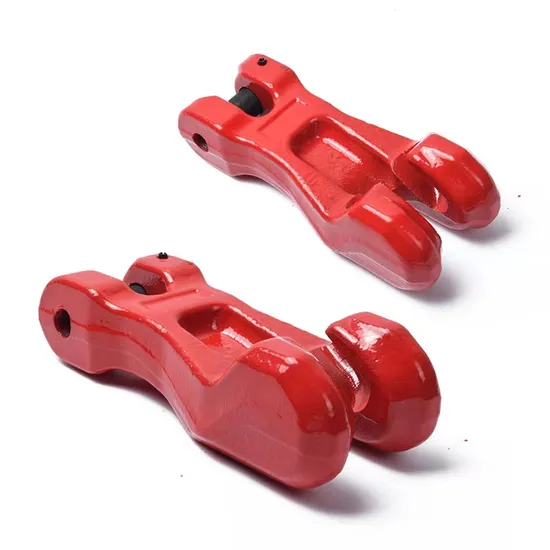

G80 G 70 Clevis Shortening Clutch

Product Description

Products Description G80 G 70 Clevis Shortening Clutch
To know us
Gostern Rigging Co., Ltd.Is established in the year of 2001 in China.The company covers an area of 33000 square meters, more than 600 employees.It is a specialized slings company which can design, manufacture and market.
Our main products are steel wire ropes, wire rope slings, synthetic fiber belt slings, nylon braided ropes, chain slings, steel plate lifting clamps, metallurgy clamps, hanging beams, rigging accessories and so on.The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.The perfect performance has been highly appraised by Users.
Specification of our products

Inspection Before Use The pre-use check for hooks should cover the following: 1. The WLL should be clearly marked. 2. The safety catch should be in place and functioning correctly. 3. The hook should be checked for any distortion, cracking and excessive wear or corrosion. NOTE: The wear on the bearing surface of the hook should not exceed 8% of the nominal dimension. 4. Check that the opening of the hook is within the manufacturers parameters. If the hook is opened excessively it is a sign that it has been point loaded or overloaded. 5. Moving parts such as release cams should be checked for free movement. 6. If the hook is a ball bearing swivel hook check that the hook is swivelling freely and that the bearing is not making any unusual noises. Unusual noises are often a sign of bearing fatigue or bearing failure. 7. If the hook has a threaded machined shank ensure that the thread is in good order and that the nut is turning freely on the thread

WLL	CHAIN SIZE	DIMENSIONS					WEIGHT
T	MM	AB	C	D	E	F	KG/PCS
1.12	6	6	8	7	11	45	0.2
2	7.8	8	10	9	16	62	0.4
3.15	10	12	14	12	25	87	0.9
5.3	13	16	17	15	32	115	1.9
8	16	20	19	19	39	143	3.2
12.5	18-20	21	23	22	46	152	6

Care in Use 1. For hooks used in frequent load cycles or pulsating loads, the hook and threads should periodically be inspected by Magnetic Particle or Dye Penetrant. (Note: Some disassembly may be required. ) 2. Never use a hook if its throat opening has been increased, or its tip has been bent more than 10 degrees out of plane from the hook body, or is in any other way distorted or bent. Note: A safety catch will not work properly on a hook with a bent or worn tip. 3. Never use a hook that is worn beyond a recommended maximum of 8%. 4. Remove from service any hook with a crack, nick, or gouge. Hooks with cracks, nicks, or gouges shall be repaired by carefully grinding lengthwise, following the contour of the hook, provided that the reduced dimension is within the 8% wear limit. 5. Never repair, alter, rework, or reshape a hook by welding, heating, burning or bending. 6. Never side load, back load, or tip load a hook. 7. Eye hooks, shank hooks and swivel hooks are designed to be used with wire rope or chain. Efficiency of an assembly may be reduced when used with synthetic material. 8. Always make sure the hook supports the load. The catch must never support the load. 9. When placing two sling legs in a hook, make sure the angle from the vertical to the outermost leg is not greater than 45 degrees, and the included angle between the legs does not exceed 90 Degrees. 10. The WLL of a hook applies only when the load is correctly positioned on the load line of the hook. If the hook is eccentrically loaded, or the load is applied other than on the load line, the WLL is greatly reduced. 11. Always use a swivel hook, or insert a swivel link between the load hook and the lifting rope, when the load has a tendency to rotate when lifted. 12. Always check to ensure that the hook safety catch has closed correctly before allowing the load to be lifted
PLANT VIEW
What we achieved
we have achieved many awards both domestic and worldwide.Pls see our achievements as bellow :



Our Difference

SATISFACTORY SERVICE
- Leatime 5-14 days
- 3 years warranty
- Varied packaging choice
-we welcome you to have a factory tour
Experience
- Long history in the sling area for almost 20 years
-sales volume increase to over 40 million per year
To contact us
Thank you for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 2-5 days, mass production time needs 1-3 weeks for order quantity more than one container
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1PC for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: Train and sea shipping both can provide. Shipping time depends on distance.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We offer you the ideal products and price .
Thirdly we strike the deal if everything goes well.
Fourthly We arrange the production.
Q6. Is it OK to print my logo and change package?
A: Yes. Please inform us formally before our production.we need comfirm with you the design.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. We will do several inspection before we send to you.
