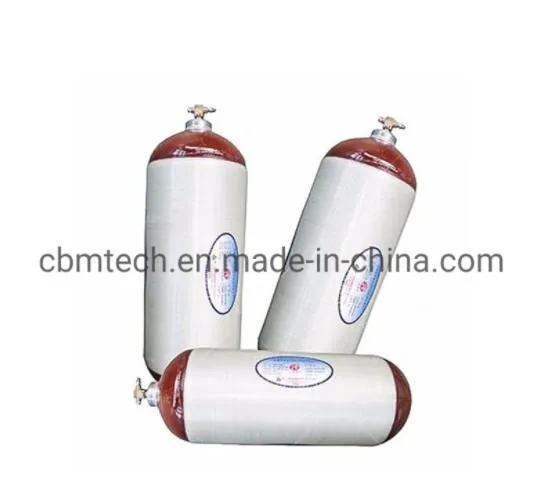

CNG Steel Gas Cylinder for Car

Product Description

Product Description
GB24160-2009 std Type 2 CNG cylinders 50L, 200bar CNG-2 Cylinders (Type-II CNG Cylinders), CNG2 cylinders, Compressed Natural Gas Storage Tanks for vehicles, cars & trucks.
Glass Fiber Hoop Wrapped CNG Cylinder is mainly a glass fiber hoop wrapped steel inner cylinder, which is applied to the field of vehicle-mounted compressed natural gas. The fiber carries a ring-to-partial stress.CNG Cylinder's filling medium is compressed natural gas, which is widely used in cars, buses and trucks. It is safe, environmentally friendly and energy-saving. The main models of the product include: Φ219, Φ232, Φ279, Φ300, Φ325, Φ356, Φ406, etc.
-water Capacity: 50L.
-Material: 30CrMo+composite;
-Working Pressure: 200bar;
Referenced Specifications of CNG Cylinders series:
-Water capacity: 20L-180L;
-Material: 34CrMo4/30CrMo;
-WP: 20MPa/ 25 Mpa;
-Outer Dia.: 204mm, 232mm, 267mm, 279mm, 325mm, 340mm, 356mm, 406mm;
-Manufacturing Standard: GB24160-2009, ISO11439, ISO9809, ECE R110;
-Certificate: ISO11439, ISO9809, E-MARK.
Our CNG Cylinders are produced according to ISO11439 /GB24160 (E) standard. For its advantages of cleanliness and energy economizing, Compressed Natural Gas Storage Tanks are more and more acceptable for customers from many regions and countries. With the high-quality and top-ranking services, our products have obtained good reputations. In the future, we will spare no effort making our Compressed Natural Gas Storage Tanks to be worldwide well-known brand depending on the favor of new and old clients and the cooperation with each other.

Type	Outside Diameter (mm)	Capacity (L)	Length (mm)	Weight (kg)	Working pressure (MPa)	Wall Thickness(mm)	Material
CNG2-G-232-30-20B	232	30	876±5	25	20	3.6	30CrMo+ Composite
CNG2-G-325-50-20B	325	50	810±5	42	20	4.9
CNG2-G-325-55-20B		55	875±5	46
CNG2-G-325-60-20B		60	940±5	50
CNG2-G-325-65-20B		65	1005±5	54
CNG2-G-325-70-20B		70	1070±5	58
CNG2-G-325-80-20B		80	1200±5	66
CNG2-G-325-90-20B		90	1330±5	74
CNG2-G-325-100-20B		100	1460±5	82
CNG2-G-325-110-20B		110	1590±5	90
CNG2-G-325-120-20B		120	1720±5	98
CNG2-G-356-65-20B	356	65	871±5	59	20	5.5	30CrMo+ Composite
CNG2-G-356-70-20B		70	926±5	62
CNG2-G-356-75-20B		75	981±5	65
CNG2-G-356-80-20B		80	1036±5	68
CNG2-G-356-85-20B		85	1091±5	71
CNG2-G-356-90-20B		90	1146±5	74
CNG2-G-356-103-20B		103	1285±5	84
CNG2-G-356-100-20B		100	1256±5	82
CNG2-G-356-110-20B		110	1366±5	89
CNG2-G-356-120-20B		120	1476±5	96
CNG2-G-356-200-20B		200	2356±10	155
CNG2-G-406-80-20B	406	80	850±5	70	20	6.0	30CrMo+ Composite
CNG2-G-406-90-20B		90	930±5	74
CNG2-G-406-100-20B		100	1010±5	82
CNG2-G-406-103-20B		103	1030±6	85
CNG2-G-406-110-20B		110	1100±5	88
CNG2-G-406-120-20B		120	1180±5	95
CNG2-G-406-200-20B		200	1850±10	152
