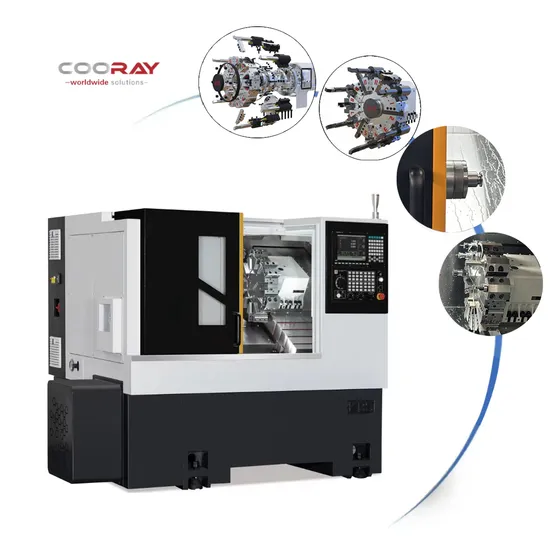

Cooray Crl200tl Mazak Design Static Turret Slant Bed Tailstock Fanuc/Siemens CNC Turning Lathe
| US$40,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CRL200TL
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Number of Spindles
3
Number of Axes
3
X-Axis Travel (mm)
800
Z-Axis Travel (mm)
470
Transport Package
The Two Sides Negotiate Logistics.
Specification
2300*1700*1700
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
260.00cm * 190.00cm * 216.00cm
Package Gross Weight
4500.000kg
Product Description
Product Description| Equipment technical data ·CRL200TL | |||
Item | Name | Unit | CRL200TL |
| Process capability | Diameter of bed rotation | mm | φ500 |
| Maximum machining diameter | mm | φ350 | |
| Maximum processing length | mm | 350 | |
| Maximum bar through hole diameter | mm | φ51/65 | |
| Tailstock | / | Programmable(optional) | |
| Axial | X-axis stroke | mm | 205 |
| Z-axis stroke | mm | 340 | |
| X/Z axis rapid speed rate | m/min | 20 | |
| X/Z axis motor power | kw | 2.4 | |
| X/Z repeated positioning accuracy | mm | ±0.0025 | |
| Principal axis | Maximum spindle speed | rpm | 3500 |
| Card size | inch | 8 | |
| Spindle nose model | / | A2-6 | |
| through hole diameter | mm | φ52/φ66 | |
| The diameter of the inner hole of the | mm | φ66/ φ82 | |
| s(s)pin(n)dle(e) motor power | kw | 11 | |
| Knife tower | Knife tower model | / | 12station BMT45 |
| Stations of knife tower | / | 12 | |
| Size of outer diameter blade handle | mm | 25*25 | |
| Inner diameter of blade handle | mm | φ32 | |
| Machine structure | bed structure | / | Flat rail+ramp |
| X/Z axis rail | mm | 35/45 pin roller | |
| X/Z lead screw | mm | 32/32 | |
| Boundary dimensio | Ength*width*height | mm | 2300*1700*1700 |
| Power source | Total power of machine tool | KW | 20 |
| Weight of machine | / | KG | 3500 |
