CE ISO Approved Low Cost Chicken Broiler Poultry Shed Farm Equipment Design

Product Description

CE ISO approved Low Cost Chicken Broiler Poultry Shed Farm Equipment Design
(Brand:U-BEST)
What information you are supposed to provide to get a good price?
a. Chicken farm size (Length*width*height for breeding area )
b. Quantity of chickens in one house
c. Weight of chickens while for sale
d. Chicken farm location and local climate condition (temperature, humidity...);
e. desentity : ? birds/m2
U-BEST poultry shed equipment warranty:
1. all plastic products are made of virgin raw material such as the feed pan , water drip cup ,clips ,
air inlet 15 years
2. Nipples : 10 years
3.The accesorries such as the bolts ,nuts ,pulley ,water winch ,rope clips are stainless steel
4. Feed motors from Italy brand Transtechno
5. Auger from South Africa technical system
6. Feed sensor from Germany
7. Control box :Schneider/SIEMENS/FUJI/ABB brand.
Welcome to buy the full set large modern broiler farm production equipment on the ground with our factory.
As one of the Broiler Farm Equipment manufacturers and suppliers, we also support customized production.
To start your farming business easily, don't hesitate to contact us any more.
Product Description
We can supply follow system for poultry farm:
1.Main feeding line system:
Function:
The system can convey feed from silo/hopper into each feeding line hopper.
A: Option 1: Feed Silo
B: Option 2: Manpower hopper
(1) Drive motor:
Power: 0.75KW, Voltage:380V, Frequency:50HZ, Three-phase AC current
(2) Delivery feeding system:
Feeding capacity: 1400KG / h Maximum feeding length:60m
Radius of bending pipe: R1500 ( inclinable angle: 30 degrees )
Feed level sensor: import from Germany IFM.

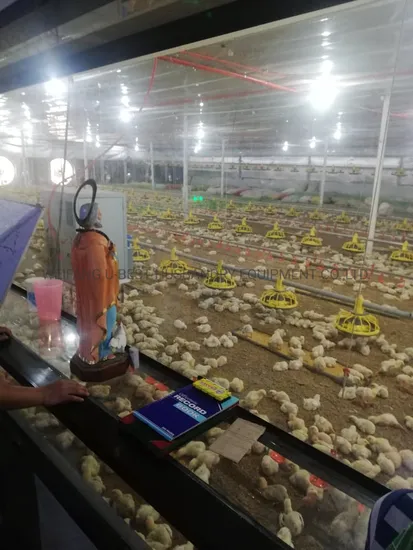

2.Automatic pan feeding line system:
Product Description:
Automatic pan feeding system consists of driving device, hopper, conveying pipe, auger, suspension lifting
device, anti-perching device and feed sensor. The main function of the system is to convey the feed in the
hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying
opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
(1) High-quality special driving reduction motor
Power: 0.75kw, Voltage:380V Frequency: 50HZ, Three-phase
(2) V-shaped Hopper
Bin Volume: 115L, Hopper volume: 38L
Material: Hot-DIP galvanized sheet
(3) Feeding Pipe
Diameter of conveying pip: Φ 45mm
Material: Hot-DIP galvanized steel pipe with the zinc coating amount of more than 275 g/m2
(4).Feeding pan
New PP material with more than 6 type feeder pan
Plasson type feed pan,Big herdsman type feed pan,Valco type feed pan, UBT type feed pan.


3.Automatic nipple drinking system:
(1). Function:
The system can provide clean and fresh water to broiler chickens steadily, the water will be out when birds
touch nipples.
Our nipple's rod can be movable in 360 degrees, easy to drink.
(2). Specification:
1) Waterline front system
This front part is controller of water, it's main function is to adjust water supplying pressure
and stabilize drinking volume, which is usually installed in control room, include:
*Pressure regulating valve-make sure to supply stable water to drinking lines;
*Filter-clean water and avoid blocking nipples;
*Water meter-measure water usage volume.
*Doser/Medicator-add medicine to drinking system automatically to prevent disease.
2) Pressure regulator
Good regulating stability, high switching performance;
Water supply is sufficient&equality;
Recoil cleaning with good cleaning result, save time and water;
Good quality movable valve, easy to change.
3) Nipple drinker lines:
Plasson type nipple drinking system
Big herdsman type nipple drinking system
Lubing type nipple drinking system
The drinking line specification: 15 nipples/3m, 12 nipples/3m
A.The nipples outside shell is made of high quality plastic, the inner rod is made of high quality
stainless steel.
a. All nipples are anti-corrosion, service life over 10 years.
b. Double-sealing structure, avoids water leakage and its bad influence to chicken house.
c. Birds can drink from 360 degrees, easier to drink.
d. Meeting drinking demand of different-period chickens.
B. The drip cup is single-arm design is more suitable for modern chicken raising idea.
C. The square water pipe is lower possibility of water accumulation than round water pipe.

4.Ventilation system:
(1). Function:
The system controls poultry house inner environment, provides fresh air, proper humidity for your
chickens, ensuring your broilers provide maximum production.
(2). Ventilatioin system:
a. Centrifugal shutter type exhaust fan:
(We also could supply drop hammer fan, butterfly cone fan and hanging cow fan)

Model	Blade diameter(mm)	Air flow(m3/h)	Power(W)	Size(mm)	Voltage
UBT-1000	910	21000	550	1000*1000*450	380V, 50Hz
UBT-1380	1250	44000	1100	1380*1380*450	380V, 50Hz

b.Air inlets:
Automatic control: As per the request of difference chicken house pressure by controller, make the air
inlet window open and off automatically.


5.Cooling pad system:
Performance parameters:
Length* Width*Thickness: it can be customized
Frame: Galvanized Steel, Aluminium Alloy and Stainless Steel
Color: Brown, Brown&Green, Green, Black

6.Environment control system:
(1).Function:
The system can set suitable mode according to different stage birds raising requirment to temperature,
humidity,through control on and off of ventilation fans, cooling pads,heaters even air ilets to achieve the
aim of autoamtic controlling of chicken farm equipment.
(2).Components:
a.Environment controller
Imported from Israel, four series of your option- t607/t610/t616/image II, they can achieve minimum
ventilation-transition ventilation-tunnel ventilation differently.
b.Temperature sensor and humidity sensor
They can be connect to environment controller to display indoor temperature and humidity.
c.New design control box
Our control box have standard box body, use good quality electronic elements from great brands. such
as CHINT, SIEMENS,SCHNEIDER, FUJI,ABB, also have alarm device (power failure,high temperature/
low temperature alarm).
d.Chick scale system and silo weighing system

7.Heating system:
Company Profile
U-BEST Company information:
Why not choose us?
Here is some customers feedback.
You can gain more income by using U-BEST poultry farm equipment. WHY NOT CHOOSE US.
Please contact Mrs Grace Wu for more details freely.
To get fast answer please kindly offer your chicken shed size (Lengthxwidthxheight) or
the number of chicken you plan to raise.
